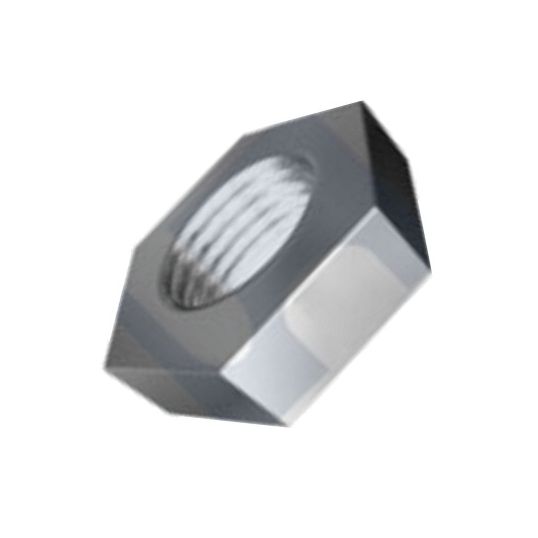

Hobson Hex Thin Lock Nut M4x0.7 Coarse DIN 439 Grade A2-70 304 Stainless Steel
Description
Hex Thin Lock Nut, Metric, M4, 0.7 mm Pitch, Hex Head, Coarse Thread, 1.95-2.2 mm Height, 6.78-7 mm Width Across Flat, 7.66-8.08 mm Width Across Corner, Grade A2-70, 304 Stainless Steel, DIN 439
Key Specifications
| Barcode (EAN-13) |
9314818321518
|
|---|---|
| SKU |
HOBNL04PCM04
|
| Brand |
Hobson
|
| Product Type |
Strut Fasteners & Fixings
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | NL04PCM04 |
| Grade | Grade A2-70 |
| Fitting Size | M4 |
| Head Type | Hex |
| Imperial-Metric | Metric |
| Height | 1.95-2.2mm |
| Standards | DIN 439 |
| Thread Pitch | 0.7mm |
| Thread Type | Coarse |
| Width Across Corner | 7.66-8.08mm |
| Width Across Flat | 6.78-7mm |
