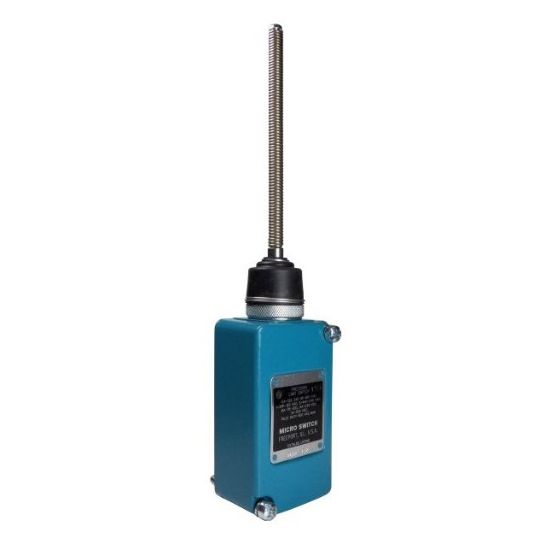

Honeywell Limit Switch Multi-directional 1NO-1NC Snap Action Wobble Stick Multi-Directional Coil Spring Extension IP67
Description
Limit Switch Multi-directional, 480 Volt AC, 550 Volt DC, 10 Amp, Wobble Stick Multi-Directional Actuator Coil Spring Extension, 1NO+1NC, Snap Action, Screw, IP67, Die-Cast Zinc, -29 to 71 deg C, Medium Duty Metal Form
Key Specifications
| SKU |
HON208LS152
|
|---|---|
| Brand |
Honeywell
|
| Product Type |
Limit Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 208LS152 |
| Actuator Type | Wobble Stick Multi-Directional Coil Spring Extension |
| Contact Configuration | 1NO+1NC Snap Action |
| Current | 10 Amp |
| IP Rating | IP67 |
| Please Note | Medium Duty Metal Body Form |
| Temperature | -29 to 71 deg C |
| Terminal Connection | Screw |
| Voltage | 480 Volt AC/550 Volt DC |
