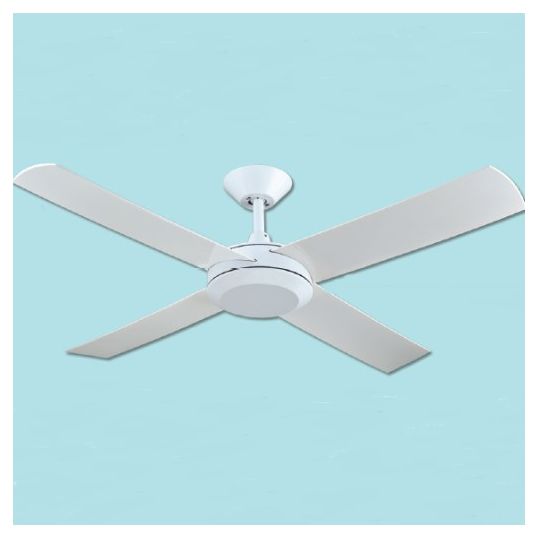

Hunter Pacific Ceiling Sweep Fan 4 Blade 1320mm 3 Speed Wall Controller Polymer Aerofoil White Ceiling

chevron-left

Description

chevron-down
Ceiling Sweep Fan, Fan Size: 1320mm, 240 Volt, Motor Wattage: 58.5/24/12 Watt, Motor Speed: 205/135/90 rpm, Control Type: 3 Speed Wall Controller, Air Flow Rate: 14144 cu-m/hr, 10 deg Blade Pitch, Motor Type: AC, Ceiling Rake: 28 Deg, Number of Blades: 4, Ceiling Mounting, Die-Cast Aluminium Body, Polymer Aerofoil Blade, Die Cast Aluminium Canopy, White Body, White Blade, 260mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
9334002035007
SKU
HUNA3500
Brand
Hunter Pacific
Range Name
Concept 3
Product Type
Ceiling Sweep Fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Slimline motor technology
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product A3500
Air Flow Rate 14144 cu-m/hr
Blade Colour White
Blade Pitch 10 Degree
Body Colour White
Blade Material Polymer Aerofoil
Body Material Die-Cast Aluminium
Canopy Material Die Cast Aluminium
Ceiling Rake 28 Degree
Fan Size 1320 mm
Control Type 3 Speed Wall
Motor Speed 205/135/90 rpm
Height 260mm
Motor Type AC
Motor Wattage 58.5/24/12 Watt
Mounting Method Ceiling
Number of Blades 4
Voltage 240 Volt
