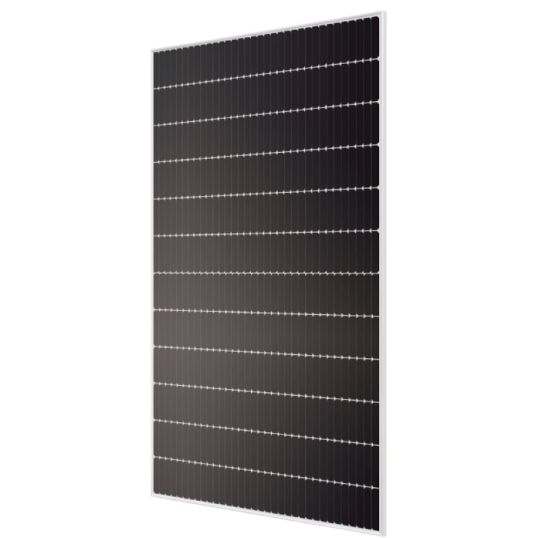

Hyundai Energy Solutions Solar Panel 480W PERC Monocrystalline Silicon Shingled 408 Cells 38.8V 12.37A M6 46.6V 13.16A

$Hyundai_Energy\Hyundai-Energy_HIE-S480VI.jpg$

Description

Solar Panel, M6 Model, PERC Monocrystalline Silicon Shingled Cell, 408, 480 Watt, 38.8 Volt Maximum, 12.37 Amp Maximum, 46.6 Volt Open Circuit, 13.16 Amp Short Circuit, 20 Amp Max. Fuse, 1500 Volt DC Max. System, 20.5% Efficiency, 0-5 Watt Power Tolerance, MC4-Evo2 Connector, 2056 mm Length

Key Specifications

SKU	HYUHIE-S480VI
Brand	Hyundai Energy Solutions
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	M6 PERC Shingled- M6 PERC Shingled Technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space. Mechanical Strength-Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind. Reliable Warranty-Global brand with powerful financial strength provide reliable 25 year warranty UL / VDE Test Labs-Hyundai's R&D center is an accredited test laboratory of both UL and VDE
Standard Pack Size	682
UNSPSC Class	26111600
UOM	EA
Vendor Product	HIE-S480VI
Cell Type	Monocrystalline
Connector Type	MC4-Evo2
Certifications	CE
Efficiency	20.50%
Frame Construction	Anodized Aluminum White
Front Glass	3.2 mm White toughened safety glass
Height	35 mm
Item Weight	25 kg
Junction Box	IP67 / 2 Bypass Diodes
Max. Fuse Current	20 Amp
Max. System Voltage	1500 Volt DC
Max. Voltage	38.8 Volt
Model	M6
Number Of Cells	408
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Output Cables	1200 mm Length, 1 x 4 sq-mm
Temperature Coefficient	-0.34%/ deg C
Warranty	25 Years Product / 25 Years Performance
Wattage	480 Watt
Width	1140 mm
