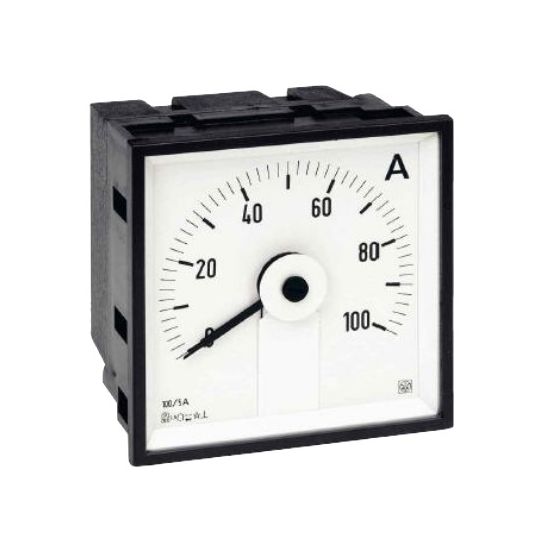

IME AC Ammeter Analogue Moving Iron Current Transformer 0-150A x 5 240Deg 72mm W Panel Mount

Description

AC Ammeter Analogue Moving Iron, 0 to 150 Amp With x 5 Over-Scale, 1 to 100 Amp, 50 Hz, Current Transformer, 240 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 72 mm Height x 72 mm Width, Panel Mount, Self-Extinguishing Polycarbonate

Key Specifications

SKU	IMEAQ72EACT5A5X150A
Brand	IME
Range Name	AQ72
Product Type	Ammeters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	AQ72EACT5A5X150
Current	1/100 Amp
Display	Analogue
Frame Size	72mm x 72mm
Frequency	50 Hz
Mounting Method	Panel
Operation Form	Current Transformer
Readout Form	240 deg Deflection Accuracy Class 1.5
Scale	0 to 150 Amp with x5 Over-Scale
Temperature	-25 to 50 deg C
