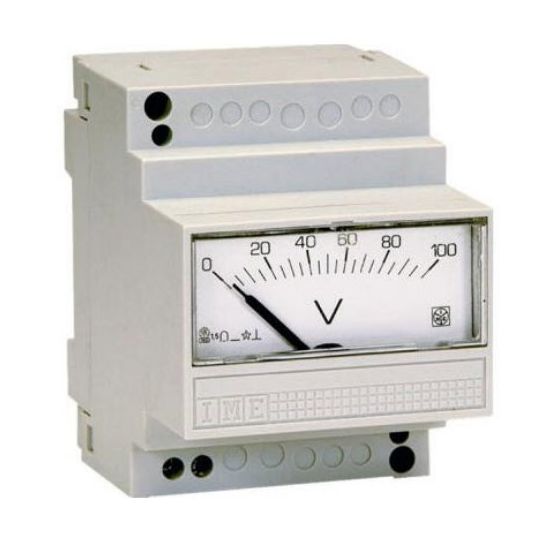

IME AC Voltmeter Analogue Moving Iron Direct Connection 0-100V 90Deg 70mm W DIN 35 Rail Mount

$IME\IME_D4EVAC.jpg$

Description

AC Voltmeter Analogue Moving Iron, 0 to 100 Volt AC, 100 Volt AC, 50/45-65 Hz, Direct Connection, 90 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 89.5 mm Height x 70 mm Width, DIN 35 Rail Mount, Polycarbonate, 45 mm Height x 70 mm Width x 65.6 mm Depth

Key Specifications

Barcode (EAN-13)	9321807074782
SKU	IMED4EVAC100V
Brand	IME
Range Name	D4
Product Type	Voltmeters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Accuracy class 1.5 IP52 rated front frame
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	D4EVAC100V
Depth	65.6 mm
Display	Analogue
Frame Size	89.5mm x 70mm
Frequency	50/45-65 Hz
Height	45 mm
Mounting Method	DIN Rail
Operation Form	Direct Connection
Readout Form	90 deg Deflection Accuracy Class 1.5
Scale	0 to 100 Volt AC
Temperature	-25 to 50 deg C
Voltage	100 Volt
Width	70 mm
