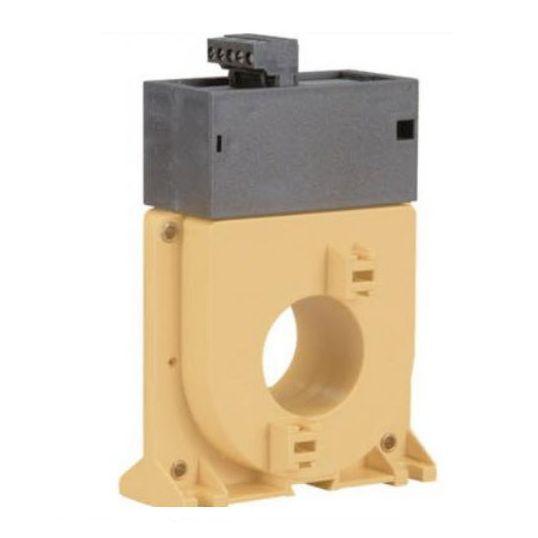

IME Combined Current Transformer And Transducer 0-400/480A

Description

Combined Current Transformer And Transducer, 115/103.5-126.5 Volt AC, 0-400, 480 Amp, Output: 0 to 20 mA, 4 to 20 mA, Insulation Class: III, IP20, Screw Terminal, Base Mount, ABS, 0 to 45 deg C, 92 mm Height x 56 mm Width x 135 mm Depth, 35 mm Internal Diameter

Key Specifications

SKU	IMEHT35A110VAC
Brand	IME
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hall effect transducer For AC or DC measurement Multiple selectable DC outputs Compact DIN mount design Basic or field programmable units
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	HT35A110VAC
Connection Type	Screw
Depth	135 mm
Current	0-400-480 Amp
Height	92 mm
IP Rating	IP20
Insulation Class	III
Mounting Method	Base Plate
Output Rating	0-20 mA
Please Note	35 mm Internal Diameter
Voltage	115-103.5-126.5 Volt AC
Temperature	0 to 45 deg C
Width	56 mm
