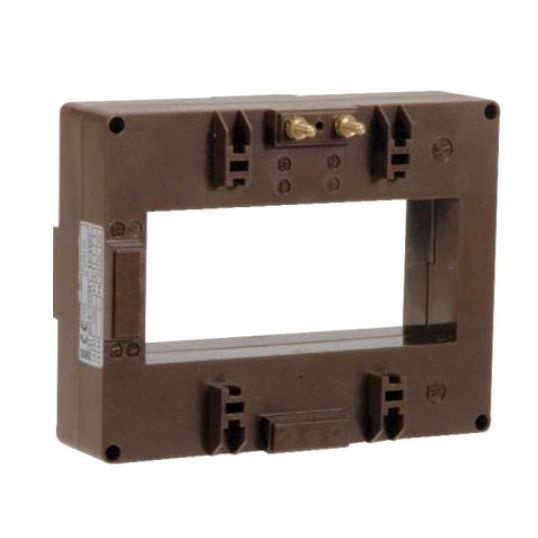

IME Current Transformer For Horizontal Busbars Primary 2500A/Secondary 5A

Description

Current Transformer For Horizontal Busbars, Primary 2500 Amp/Secondary 5 Amp, 50 Hz, Insulation Class: B, IP00, IP40, IP20, Busbar Mount, Polycarbonate, -25 to 50 deg C, 98 mm Height x 40 mm Width x 129 mm Depth, 102 Height x 38 Width mm Window

Key Specifications

SKU	IMETAS102H25005A
Brand	IME
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A broad range of primary currents Cable or busbar type Solid core High accuracy Class 0.5
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TAS102H25005A
Current	Primary 2500 Amp/Secondary 5 Amp
Depth	129 mm
Height	98 mm
Frequency	50 Hz
Insulation Class	B
IP Rating	IP00/40/20
Mounting Method	Busbar
Please Note	102 Height x 38 Width mm Window
Temperature	-25 to 50 deg C
Width	40 mm
