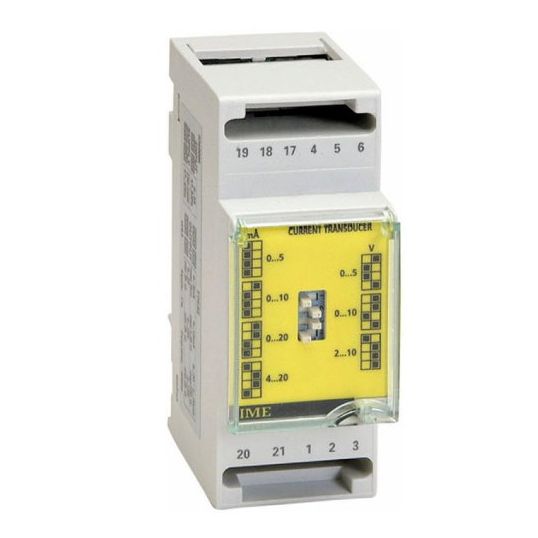

IME Transducer For AC Current 5A 0-5/10/20 mA 4-20 mA 115V

$IME\IME_TM3I.jpg$

Description

Transducer For AC Current, 115 Volt AC, 5 Amp, 0-5/10/20 mA, 4-20 mA, 50 Hz, Accuracy: 0.5, 4 mm, Screw Terminal, DIN Mount, IP20, IP40, Polycarbonate, 89 mm Height, 35 mm Width, 65.6 mm Depth, 0 to 45 deg C, Humidity Range: 0.75

Key Specifications

SKU	IMETM3I230
Brand	IME
Product Type	Transducers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Available for AC or DC measurement Compact DIN mount design Basic or Field programmable units available
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TM3I230
Accuracy	0.5
Conductor Size	4 sq-mm
Connection Type	Screw Terminal
Current	0-5-10-20 mA/5 Amp
Depth	65.6 mm
Frequency	50 Hz
Height	89 mm
Humidity Range	0.75
Input Voltage	115 Volt
IP Rating	IP20/40
Mounting Method	DIN Rail
Temperature	0 to 45 deg C
Width	35 mm
