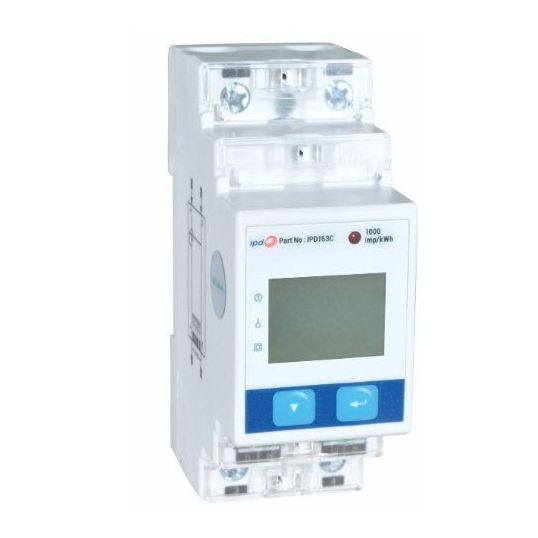

IPD Multifunction KWH Meter 240V 1Ph 63A DC RS485 Modbus RTU DIN Rail Mount

Description

Multifunction KWH Meter, 240 Volt Input, 45/65 Hz, 1 Phase Phase, LCD Display, 6-1/2 Number of Digits, DIN Rail Mounting, 90 mm Height, 36 mm Width, 65 mm Depth

Key Specifications

SKU	IPDIPD163C
Brand	IPD
Product Type	Multifunction Meters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Class 1 accuracy to IEC 62053-21 63 Amp direct connect Low starting current at 20 mA Multifunction measurements of voltage, current, kW, kvar, kVA, PF and frequency, kWh and kvarh Imp/Tot/Net and kVAh 6-1/2 digit multifunction LCD Display Self powered, no external control power required kWh LED pulse output Solid state energy pulse output at 1000 imp/kWh RS-485 port with Modbus RTU protocol
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	IPD163C
Depth	65 mm
Display	LCD
Frequency	45/65 Hz
Height	90 mm
Mounting Method	DIN Rail
Input	240 Volt
Number of Digits	6-1/2
Phase	1 Phase
Width	36 mm
