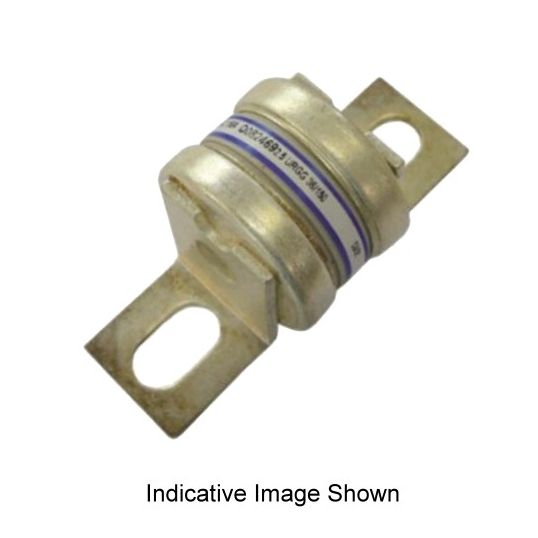

IPD Semiconductor Fuse Link Single Body Bolt In Offset 200A 250VAC 120kA 39.7x82mm
Description
Semiconductor Fuse Link Single Body Bolt In Offset, 250 VAC, 200 Amp, 48 to 66mm Fixing Centres, Interrupt Capacity: 120 kA, Class aR, Bolt In Offset Tag, 39.7mm Diameter x 82mm Length
Key Specifications
| SKU |
IPDP082468
|
|---|---|
| Brand |
IPD
|
| Product Type |
Fuse Links Semiconductor
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 3 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | P082468 |
| Current | 200 Amp |
| Fixing Centres | 48-66 mm |
| Dimensions | 39.7 mm Diameter x 82 mm Length |
| Interrupt Capacity | 120 kA |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class aR |
| Voltage | 250 Volt AC |
