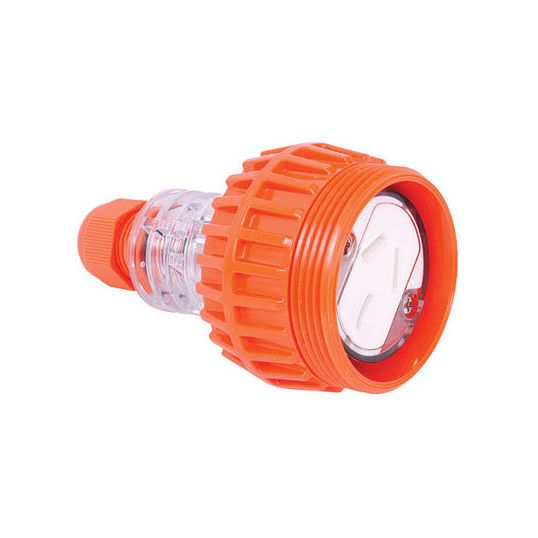

IPD Extension Socket Industrial 1Ph 20A 250V 3 Pin Flat Orange IP66
Loading...
Description
Extension Socket Industrial, 250 Volt AC/DC, 20 Amp AC1, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 2.5 sq-mm Cable Entry, M20 Cable Gland Size, 5-10 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, 110 mm Depth
Key Specifications
| SKU |
IPDW66ES320F
|
|---|---|
| Brand |
IPD
|
| Product Type |
Extension Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66ES320F |
| Colour | Orange |
| IP Rating | IP66 |
| Connection Type | Screw |
| Material | Polycarbonate |
| Pin Configuration | 3 Pin Flat |
| Current | 20 Amp AC1 |
| Depth | 110 mm |
| Cable Nominal Diameter | 5-10 mm |
| Cable Gland Size | M20 |
| Phase | 1 Phase |
| Angle | Straight |
| Voltage | 250 Volt AC/DC |
| Cable Entry | 2.5 sq-mm |
