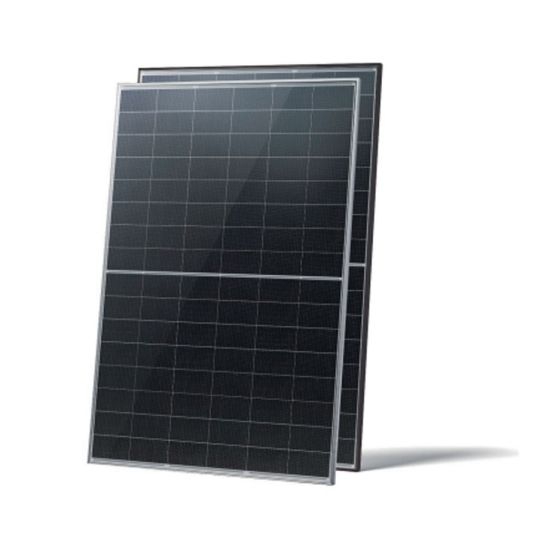

Jinko Solar Solar Panel 475W Monocrystalline 96 Cells 31.19V 15.23A Anodized Aluminum Alloy N-Type 36.73V 16.08A 30A

Name: Solar Panel 475W Monocrystalline 96 Cells 31.19V 15.23A
SKU: JKM475N-48HL4M-DV
Availability: InStock

$Jinko_Solar\JinkoSolar_JKM475N-48HL4M-DV.JPG$

Description

Solar Panel, N-Type Model, Monocrystalline Cell, 96, 475 Watt, 31.19 Volt Maximum, 15.23 Amp Maximum, 36.73 Volt Open Circuit, 16.08 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt DC Max. System, 23.77% Efficiency, 0-3% Power Tolerance, JK03M, JK03M2, Others Connector, IP68 Junction Box

Key Specifications

SKU	JKM475N-48HL4M-DV
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	N-type Technology-N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance HOT 3.0 Technology-N-type modules with JinkoSolar's HOT 3.0 technology offer better reliabilityand efficiency. Durability Against Extreme Environment-High salt mist and ammonia resistance SMBB Technology-Better light trapping and current collection to improve module power output and reliability. Mechanical Load Enhanced- Certified to withstand: 6000 Pa front side max static test load, 4000 Pa rear side max static test load Anti-PID Guarantee-Minimizes the chance of degradation causedby PID phenomena through optimizationof cell production technology and materialcontrol.
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM475N-48HL4M-DV
Cell Type	Monocrystalline
Connector Type	JK03M / JK03M2 / Others
Certifications	IEC61215:2016 / IEC617302:016 / ISO9001:2015 / ISO14001:2015 / ISO45001:2018
Efficiency	23.77%
Frame Construction	Anodized Aluminium Alloy
Front Glass	2 mm, Anti-Reflection Coating
Height	30 mm
Item Weight	24 kg
Junction Box	IP68
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt DC
Model	N-Type
Number Of Cells	96
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-3%
Output Cables	4 sq-mm (+): 400 mm , (-): 200 mm
Temperature Coefficient	-0.29%/ deg C
Warranty	15 Years Product / 30 Years Linear Power
Wattage	475 Watt
Width	1134 mm
