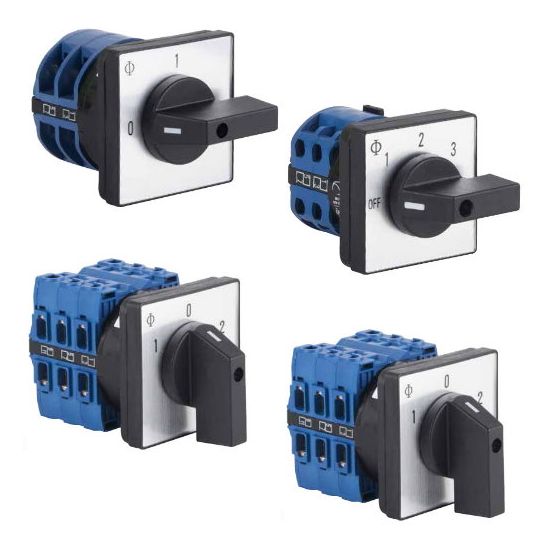

Kraus & Naimer Cam Switch 2 Step With Off Position 1P 20A AC21 7.5kW Panel Mount
Description
Cam Switch 2 Step With Off Position, AC21 Rating: 20 Amp at 690 Volt AC, AC23 Rating: 7.5 kW, 3 x 380/440 Volt AC, 1 Pole, 60 deg, 2 Step With Off Position, 3 Positions, Legend: MAN OFF AUTO, Rotary Actuator, Panel Mount
Key Specifications
| SKU |
K&NCA10-A210-623E
|
|---|---|
| Brand |
Kraus & Naimer
|
| Range Name |
Blue Line
|
| Product Type |
Cam Switches Step
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | CA10-A210-623E |
| AC21 Rating | 20 Amp AC21 @ 690 Volt |
| AC23 Rating | 7.5 kW |
| Actuator | Rotary |
| Legend | MAN OFF AUTO |
| Mounting Method | Panel |
| Number Of Poles | 1 Pole |
| Number of Positions | 3 Posn |
| Switching Angle | 60 deg |
| Switching Function | 2 Step With Off Position |
| Voltage | 3 x 380/440 Volt AC |
