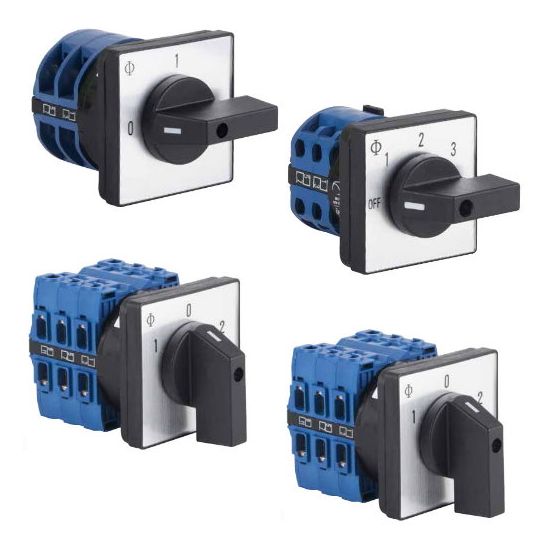

Kraus & Naimer Cam Switch Reversing 3P 25A AC21 11kW Panel Mount
Description
Cam Switch Reversing, AC21 Rating: 25 Amp at 690 Volt AC, AC23 Rating: 11 kW, 3 x 380/440 Volt AC, 3 Pole, 60 deg, Reversing, 3 Positions, Legend: 0 To 2, Rotary Actuator, Panel Mount
Key Specifications
| Barcode (EAN-13) |
9323952172351
|
|---|---|
| SKU |
K&NCA20-A401
|
| Brand |
Kraus & Naimer
|
| Range Name |
Blue Line
|
| Product Type |
Cam Switches Reversing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | CA20-A401 |
| AC21 Rating | 25 Amp AC21 @ 690 Volt |
| AC23 Rating | 11 kW |
| Actuator | Rotary |
| Legend | 0 to 2 |
| Mounting Method | Panel |
| Number Of Poles | 3 Pole |
| Number of Positions | 3 Posn |
| Switching Angle | 60 deg |
| Switching Function | Reversing |
| Voltage | 3 x 380/440 Volt AC |
