Katko Isolator Switch 63A AC-23 3 Pole 316 Stainless Steel Red/Yellow Handle IP66

Description

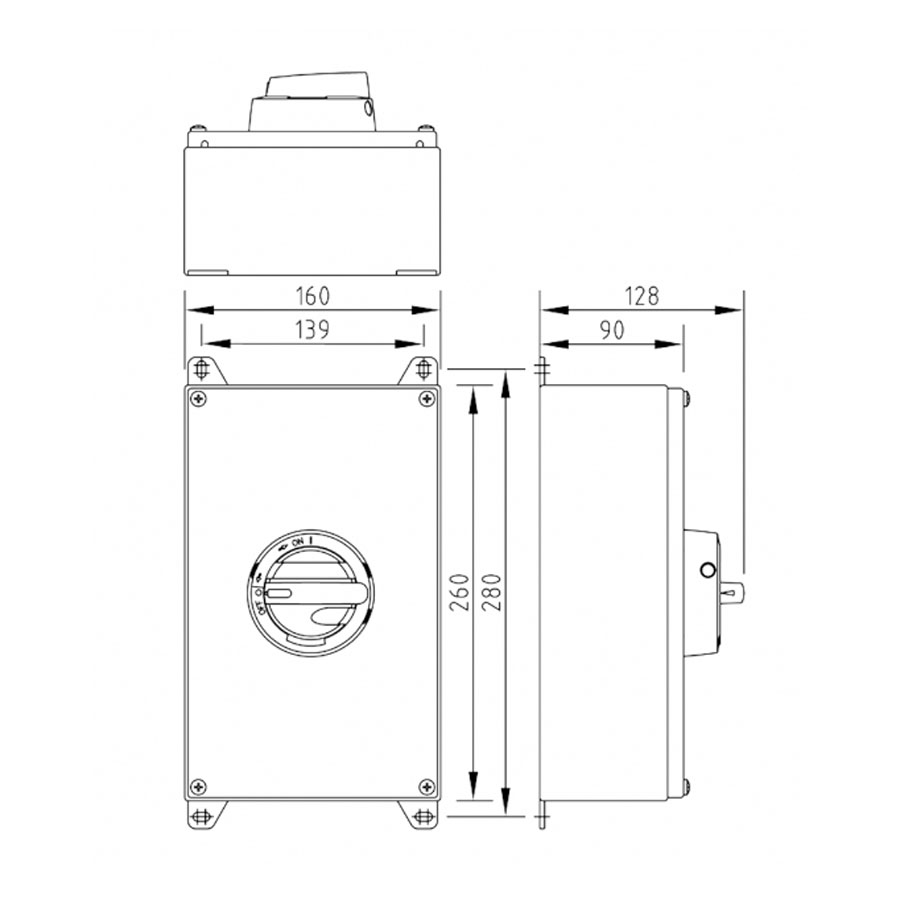

Isolator Switch, 63 Amp, 3 Pole, Front Operated, IP66, 2.5-35mm Terminal Capacity, 316 Stainless Steel, Polycarbonate Handle, Red/Yellow Handle, 280mm Height, 160mm Width, 128mm Depth

Key Specifications

SKU	KATKER380YRRA4
Brand	Katko
Product Type	Isolating Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Padlockable with three locks Door interlock with defeat mechanism Tested according to IEC 60947-3 Where hygiene and good protection against corrosion are required
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	KER380YRRA4
Colour	Red/Yellow Handle
Current	63 Amp
Depth	128mm
Height	280mm
IP Rating	IP66
Material	Stainless Steel
Method of Operation	Operators
Number Of Poles	3 Pole
Terminal Capacity	2.5-35mm
Width	160mm
