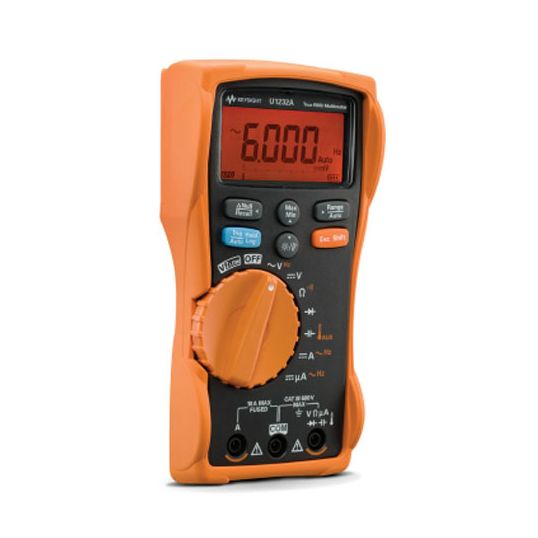

KeySight Digital Multimeter Handheld True-RMS 600mV-600VAC/DC 60uA-10A 99Hz-99.99KHz 600Ohm-60Mohm

chevron-left
loader
Loading...

Description

chevron-down
Digital Multimeter Handheld True-RMS, 600 mV to 600 Volt AC/DC, 60 uA to 10 Amp, 99.99 Hz to 99.99 kHz, 600 Ohm to 60 MOhm, 4 x 1.5 Volt AAA Alkaline Battery, -10 to 55 deg C, Digital LCD Display, 1000 nF to 10 mF Range, 1% + 3 AC, 0.5% + 2 DC Accuracy, 169mm Height x 86mm Width x 52mm Depth

Key Specifications

chevron-down
SKU
KEYU1232A
Brand
KeySight

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Built-in LED flashlight to illuminate test area
  • Flashing backlight as additional visual alert during continuity tests in noisy areas
  • Vsense to perform non-contact voltage detection
  • Data logging capability (stores up to 10 readings)
  • IR-to-USB connectivity to transfer data to PC for record
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product U1232A
Dimensions 169 mm Height x 86 mm Width x 52 mm Depth
Current 60 uA-10 Amp
Display Type Digital LCD
Frequency 99.99 Hz/99.99 kHz
Power Supply 4 x 1.5 Volt AAA Alkaline
Product Type simple
Resistance 600 Ohm-60 MOhm
Temperature -10 to 55 deg C
Voltage 600 mV 600 Volt AC/DC
