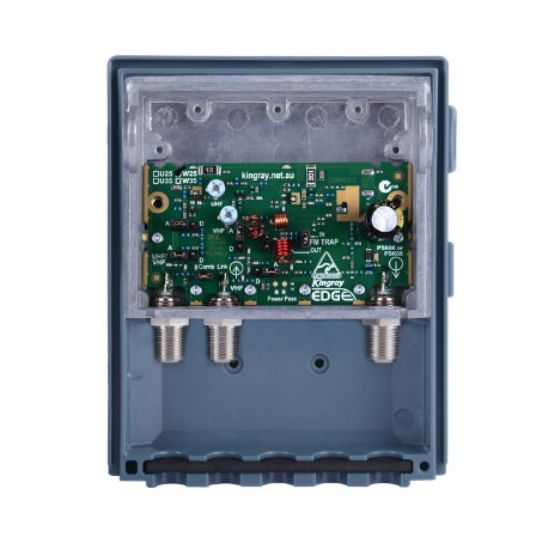

Kingray Masthead Distribution Amplifier UHF/VHF 25/15dB Gain F-Type Connector

chevron-left

Description

chevron-down
Masthead Amplifier, 174-230 MHz and 520-694 MHz, Number of Inputs: 2, Gain (Maximum): UHF 25 dB, VHF 15 dB, Connection Type: F-Type, For Use With: Antenna

Key Specifications

chevron-down
SKU
KIGMHW25FS
Brand
Kingray

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 10 dB gain control for UHF
  • 7-4 dB tilt control for VHF
  • Separate VHF and UHF inputs or combined input
  • FM radio 88-108 MHz pass through selectable
  • 4G/LTE filtering
  • 4G/LTE filtering
  • Weatherproof housing
  • High output figure of 113 dB IMR3 (DIN45004B)
  • Power consumption: 60 mA
  • Suitable power supply: PSK06 series or PSK08 series
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product MHW25FS
Connection Type F-Type
For Use With Antenna
Frequency 174-230 MHz and 520-694 MHz
Gain (Maximum) UHF 25 dB/VHF 15 dB
Number of Inputs 2
Product Type simple
