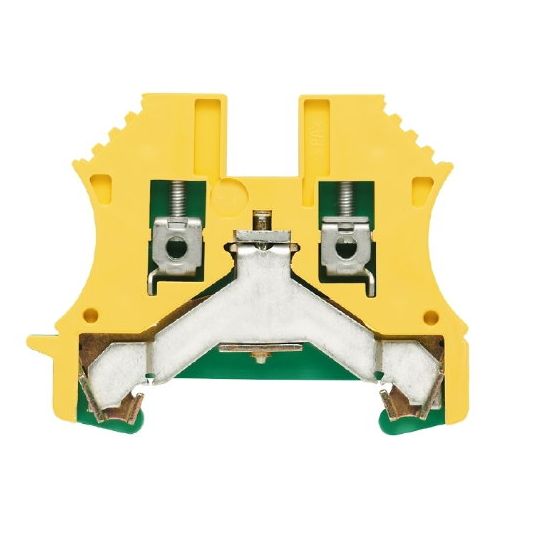

Weidmuller Klippon Rail Earth Terminal Block Screwed 2 Wire 1 Level 2.5mm Yellow/Green Wemid
Description
Rail Earth Terminal Block, 800 Volt, Rated Surge Voltage: 8 kV, 2.5mm Conductor, 2 Conductors, Wire Strip Length: 10 mm, Tightening Torque: 0.4 to 6 N/m, Wiring Format: 2 Conductor Through Screw/TP, Top Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking: Ex eb II C Gb, Screw Terminal, TS 35 DIN Rail Mount, Insulation Material: Wemid, Yellow/Green, -60 to 130 deg C Continuous Operating, Flammability: V0, Height: 60 mm, 46.5 mm Width, 5.1 mm Depth
Key Specifications
| SKU |
KLI1010000000
|
|---|---|
| Brand |
Weidmuller
|
| Product Type |
Rail Earth Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1010000000-NLA |
| Colour | Yellow/Green |
| Conductor Size | 2.5mm |
| Depth | 5.1mm |
| Flammability | V0 |
| Insulation Material | Wemid |
| Height | 60mm |
| Marking | Ex eb II C Gb |
| Mounting Method | TS 35 DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Terminal Type | Screw |
| Tightening Torque | 0.4-6 N/m |
| Voltage Rating | 800 Volt |
| Width | 46.5mm |
| Wire Entry Orientation | Top |
| Wire Strip Length | 10 mm |
| Wiring Format | 2 Conductor Through Screw/TP |
