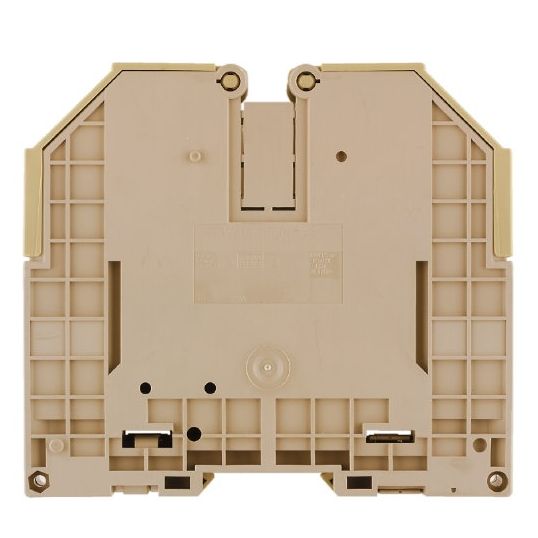

Weidmuller Klippon Rail Terminal Block Screwed 2 Wire 1 Level 95mm Dark Beige Wemid

Description

Rail Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 232 Amp, 95mm Conductor, 2 Conductors, Wire Strip Length: 30 mm, Tightening Torque: 6 to 12 N/m, Wiring Format: 2 Conductor Through, Side Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking: Ex eb II C Gb, Screw Terminal, TS-35 Rail/Snap-On Mount, Insulation Material: Wemid, Dark Beige, -60 to 130 deg C Continuous Operating, Flammability: V0, Height: 132 mm, 107 mm Width, 27 mm Depth

Key Specifications

SKU	KLI1024600000
Brand	Weidmuller
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	1024600000-NLA
Colour	Dark Beige
Conductor Size	95mm
Current Rating	232 Amp
Flammability	V0
Depth	27mm
Height	132mm
Insulation Material	Wemid
Marking	Ex eb II C Gb
Number of Levels	1
Number of Conductors	2
Number of Potentials	1
Mounting Method	TS 35 Rail - Snap-On
Number of Connection Points	2
Rated Surge Voltage	8 kV
Terminal Type	Screw
Tightening Torque	6-12 N/m
Wire Entry Orientation	Side
Voltage Rating	1000 Volt
Width	107mm
Wire Strip Length	30 mm
Wiring Format	2 Conductor Through
