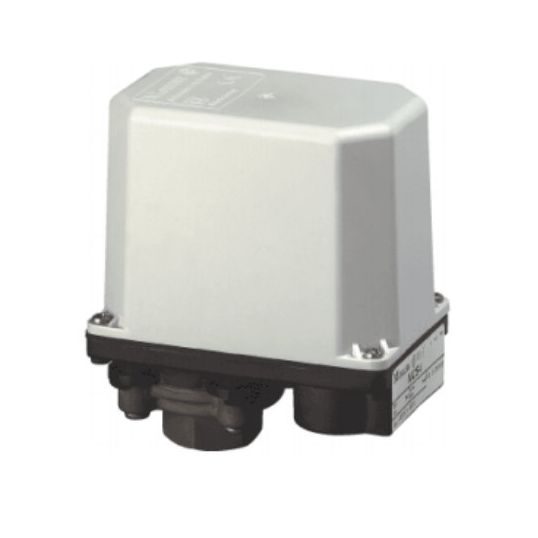

Eaton Moeller Pressure Switch 1P 1CO 7 bar IP65

Description

Pressure Switch, Pressure Range: 7 bar, 230 Volt AC, 110 Volt DC, 2 Amp at 230 Volt AC, 0.25 Amp at 110 Volt DC, 50/60 Hz, 1 Pole, 1CO, IP65, Terminal Capacity: 1 x 0.75 to 2.5 mm, 2 x 0.75 to 1.5 mm Solid, 1 x 0.5 to 1.5, 2 x 0.5 to 1.5 mm Flexible, Screw, 110 mm Height, 60 mm Width, 96 mm Depth, -20 to 70 deg C

Key Specifications

Barcode (EAN-13)	9323952179985
SKU	KLOMCS4
Brand	Eaton Moeller
Product Type	Pressure Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pressure pipe flange R 1/4 in If required: pressure pipe flange R 1/2 in 1 insulated protective conductor terminal 2 cable entry knockouts for M20 Neoprene membrane, resistant to aging, air, engine oil, and water min-25 deg C, max-80 deg C R 1/4 in corresponds to G1/4 Cut-in and cut-out pressures are factorypreset as specified with type suffix: 203948
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	MCS4
Connection Type	Screw
Contact Configuration	1 Changeover
Current	2 Amp at 230 Volt AC/0.25 Amp at 110 Volt DC
Frequency	50/60 Hz
Depth	96 mm
Height	110 mm
IP Rating	IP65
Number Of Poles	1 Pole
Pressure Range	7 bar
Temperature	-20 to 70 deg C
Terminal Capacity	1 x 0.75 to 2.5 mm-2 x 0.75 to 1.5 mm Solid/1 x 0.5 to 1.5-2 x 0.5 to 1.5 mm Flexible
Voltage	230 Volt AC/110 Volt DC
Width	60 mm
