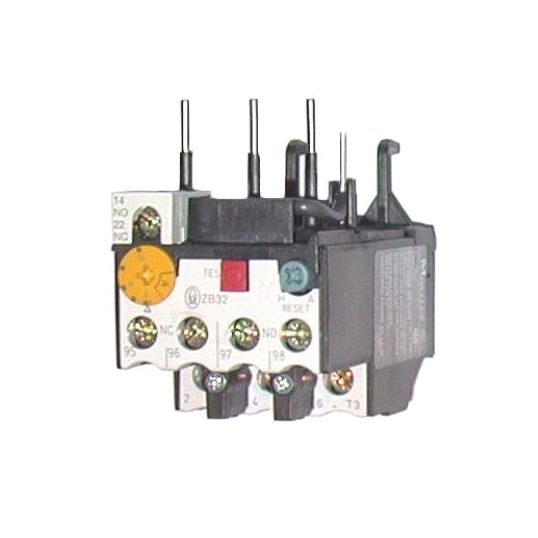

Eaton Moeller Thermal Overload Relay 1-1.6A 690V 1NO-1NC Class 10A Auto/Man IP20 Screw
Description
Thermal Overload Relay, Setting Range From (Amp): 1, Setting Range To (Amp): 1.6, 690 Volt AC, 1NO-1NC, Class 10A, Automatic/Manual, Tightening Torque: 1.8 N/m, Direct Mount, Screw Terminal, IP20, -5 to 55 deg C, 45 mm Width, 83 mm Depth, Please Note: 1 Phase
Key Specifications
| SKU |
KLOZB12-1.6
|
|---|---|
| Brand |
Eaton Moeller
|
| Range Name |
X-Start
|
| Product Type |
Contactor Overloads
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | ZB12-1-6 |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed |
| Control Type | Automatic/Manual |
| Depth | 83 mm |
| Operational Voltage | 690 Volt AC |
| IP Rating | IP20 |
| Mounting Method | Direct Attachment |
| Please Note | 1 Phase |
| Setting Range From (Amp) | 1.0 |
| Setting Range To (Amp) | 1.6 |
| Temperature | -5 to 55 deg C |
| Terminal Connection | Screw |
| Trip Characteristic | Class 10A |
| Tightening Torque | 1.8 N/m |
| Width | 45 mm |
