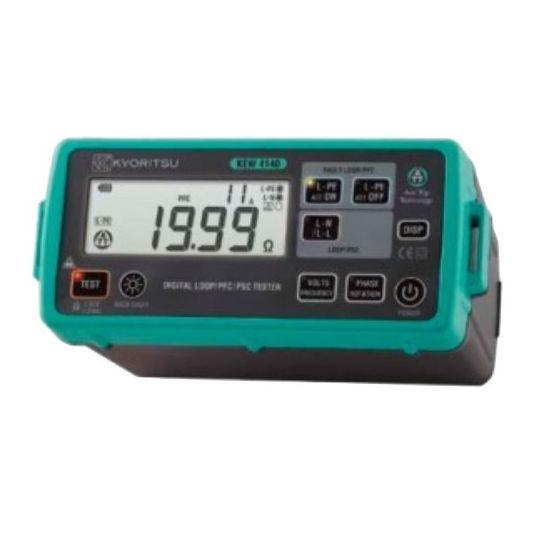

Kyoritsu Loop Tester Impedance & PSC Meter

chevron-left

Description

chevron-down
Loop Tester, 230 Volt, 50/60 Hz, LR6/R6 Battery, 0 to 40 deg C, Digital Display, 20 to 2000 Ohm Range, +/-3% Accuracy, 84 x 184 x 133mm, Impedance & PSC Meter

Key Specifications

chevron-down
SKU
KYO4140
Brand
Kyoritsu

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Anti-Trip Technology for complete trip free Loop testing on all RCDs rated 30mA and above
  • Dual Display allows simultaneous measurements like Loop and PFC/PSC
  • Two wire connection for Loop L-L, L-N and PSC testing is possible
  • Phase rotation, Voltage and Frequency measurements
  • Lock-down test button for 'hands free' testing with auto-start operation
  • Display and front panel keyboards with Backlight to be visible in dark places
  • Water and Dust proof (IP54)
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product 4140
Dimensions 84 x 184 x 133 mm
Frequency 50/60 Hz
Please Note Impedance & PSC Meter
Display Type Digital
Product Type simple
Power Supply LR6/R6
Voltage 230 Volt
Temperature 0 to 40 deg C
