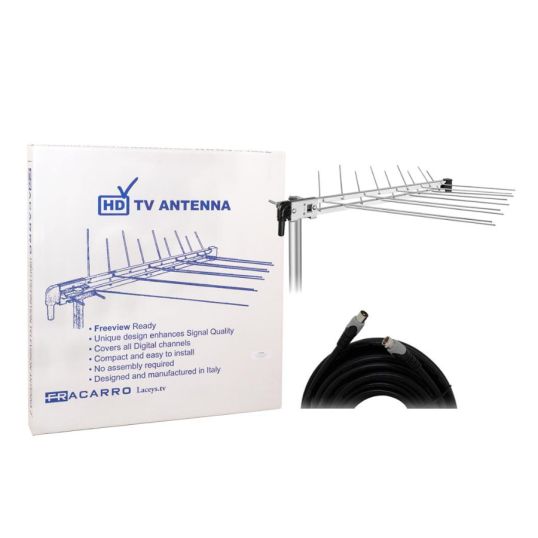

Fracarro TV Antenna Log Periodic VHF/UHF 6-12/28-69 Channel 9/11.5dB Gain Female Connector

chevron-left

Description

chevron-down
Log-periodic pre-assembled aerials for broadband characterized by V shape and extremely easy connection due to the F connector being located near the mast clamp.

Key Specifications

chevron-down
SKU
LACLPV345F/BX.
Brand
Fracarro
Product Type
TV Antennas

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Thanks to the special pole mount, the aerial can be installed in both vertical and horizontal polarisation without adaptors or other accessories
  • The geometric distribution of the dipoles has been redesigned to achieve excellent filtering for interfering signals in the 4G LTE band above 790 MHz reserved for mobile telephony
  • It features excellent mechanical resistance to fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, and good electrical performance
  • The F connector is protected by a bayonet connector cover
  • White colour aerial
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product LPV345F/BX
Boom Size 75 cm Length
Channels 6-12 VHF 28-69 UHF
Connector Type F-Type
For Use With TV
Front to Back Ratio 24 dB VHF/32 dB UHF
Number of Elements 9
