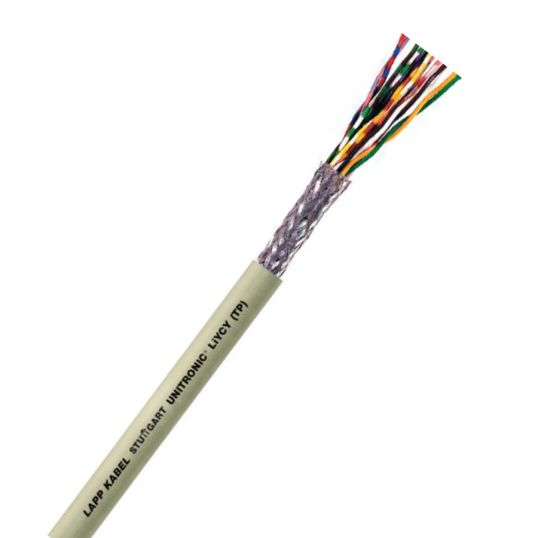

Lapp Kabel Unitronic LiYCY(TP) Data Cable 4 x 2 Pair Overall Screened 2 x 0.5mm 0.5kV PVC/TCBS/PVC Pebble Grey
Description
Data Cable, 2x0.5 mm, Bare Copper, 0.5 kV, 4 x 2 Pair, Overall Screened Screen, 9.4 mm Overall Diameter, Static 56.4 mm Flexible 141 mm Bend Radius, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Pebble Grey Sheath, Static -40 to 80 deg C Flexible -5 to 70 deg C, DIN 47100 VDE 0812
Key Specifications
| SKU |
LAP0035812
|
|---|---|
| Brand |
Lapp Kabel
|
| Range Name |
Unitronic LiYCY
|
| Product Type |
Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 0035812 |
| Bend Radius | Static 56.4 mm/Flexible 141 mm |
| Conductor Type | Bare Copper |
| Insulation Material | PVC |
| Number of Pairs | 4 x 2 Pair |
| Overall Diameter | 9.4 mm |
| Screen Format | Overall Screened |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Pebble Grey |
| Sheath Material | PVC |
| Standards | DIN 47100 VDE 0812 |
| Temperature | Static -40 to 80 deg C Flexible -5 to 70 deg C |
| Voltage | 0.5 kV |
