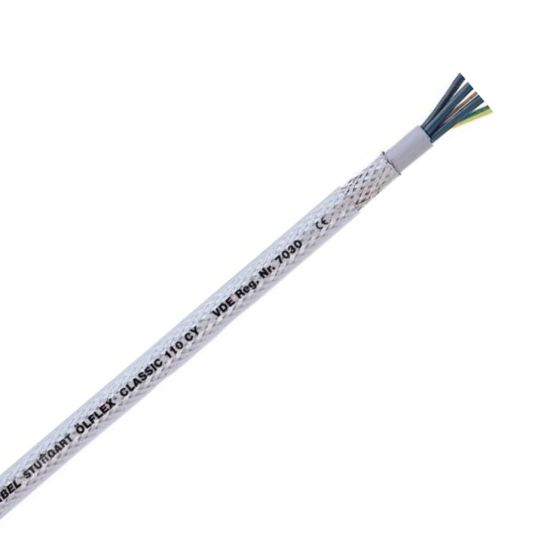

Lapp Kabel Olflex Classic 110 CY Power & Control Cable 3 Core + Earth 2.5mm 300/500V Copper PVC/PVC Transparent
Description
Flexible Control Cable, 2.5 mm, Bare Copper, 300-500 Volt, 3 Core + Earth, 11.3 mm Overall Diameter, Static 67.8 mm Flexible 226 mm Bend Radius, 7.98 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Black/White Numerals Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -5 to 70 deg C, VDE 7030
Key Specifications
| SKU |
LAP1135404
|
|---|---|
| Brand |
Lapp Kabel
|
| Range Name |
Olflex Classic 110
|
| Product Type |
Flexible Control Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1135404 |
| Bend Radius | Static 67.8 mm/Flexible 226 mm |
| Conductor Resistance | 7.98 Ohm/km |
| Core Colours | Black/White Numerals |
| Conductor Size | 2.5 mm |
| Conductor Type | Bare Copper |
| Insulation Material | PVC |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 11.3 mm |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | PVC |
| Standards | VDE 7030 |
| Temperature | Static -40 to 80 deg C Flexible -5 to 70 deg C |
| Voltage | 300-500 Volt |
