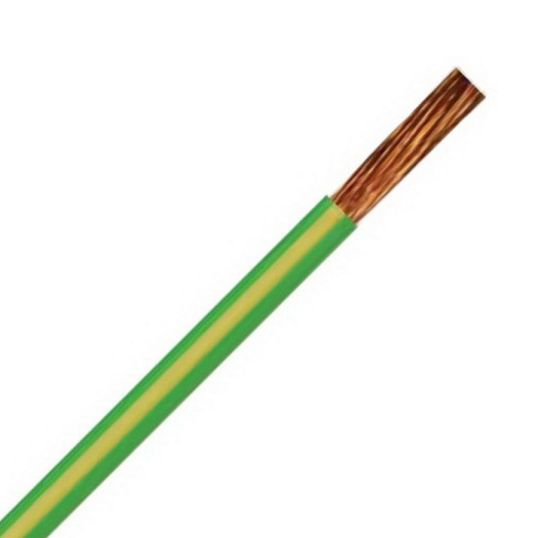

Lapp Kabel Flexible Wire Single Insulated 1 Core 120mm 0.6/1kV Copper TPR Green/Yellow
Description
Flexible Wire, Single Insulated, 1 Core, 120 mm, Class 6 Super Fine Copper, 0.6/1 kV, 950/0.4 mm Strands, 18.2 mm Overall Diameter, Bend Radius: Static - 91 mm Flexible - 273 mm, TPR Insulation, Unsheathed, Green/Yellow Insulation, -30 to 90 deg C
Key Specifications
| SKU |
LAP3801528
|
|---|---|
| Brand |
Lapp Kabel
|
| Range Name |
TP90
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3801528 |
| Bend Radius | Static: 91 mm Flexible: 273 mm |
| Conductor Size | 120 mm |
| Conductor Type | Class 6 Super Fine Copper |
| Insulation Colour | Green/Yellow |
| Insulation Material | TPR |
| Overall Diameter | 18.2 mm |
| Number of Cores | 1 Core |
| Sheath Material | Unsheathed |
| Stranding | 950/0.4 mm |
| Temperature | -30 to 90 deg C |
| Voltage | 0.6-1 kV |
