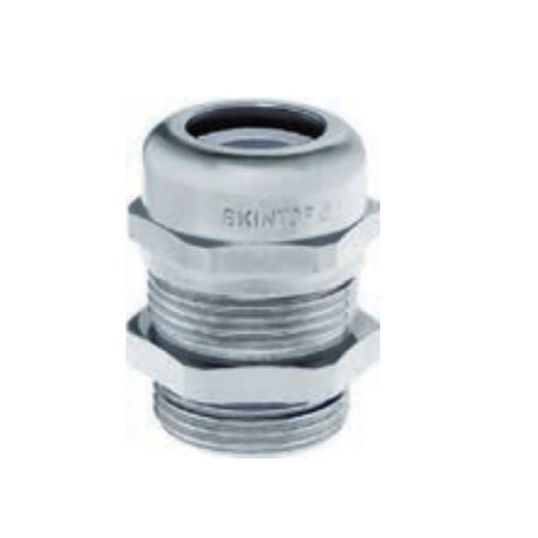

Lapp Kabel Metal Cable Gland Unarmoured General Purpose M75x1.5 53-63mm Nickel Plated Brass IP69

Description

Metal Cable Gland, Unarmoured, General Purpose, M75 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 53 mm Min. Sheath OD, 63 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 105 mm Overall Length, 1 Piece

Key Specifications

SKU	LAP53112511
Brand	Lapp Kabel
Range Name	Skintop MSR-M
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good chemical resistance Corrosion-resistant Mechanical resistance Optimum strain relief Acid-resistant Temperature-resistant Application include in areas where mechanical and chemical stability are critical, chemical industry, measurement and control technology, machine and equipment manufacturing, plant engineering
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112511
For Use With	Unarmoured Cable
Finish	Nickel Plated
IP Rating	IP69
Body Material	Brass
Overall Length	105 mm
Max. Sheath OD	63 mm
Min. Sheath OD	53 mm
Seal Material	CR
Temperature	-25 to 100 deg C (Dynamic)/-40 to 100 deg C (Fixed)
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M75 x 1.5
