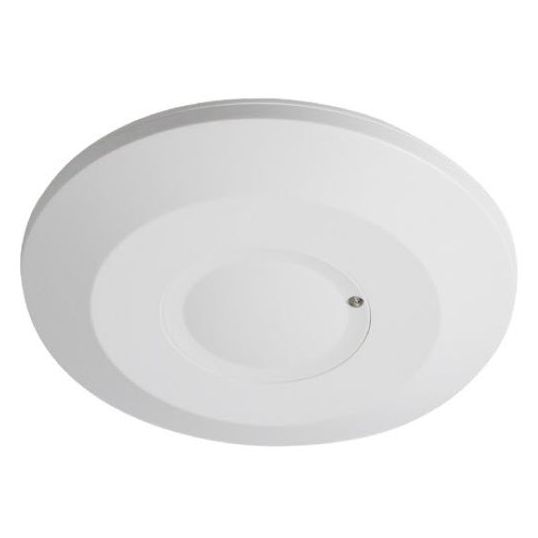

Robus Passive Infrared Motion Detector 360deg 2-16M 10A 220/240V IP20 White Surface Mount

Description

Passive Infrared Motion Detector, 220-240 Volt, 10 Amp, 50/60 Hz, 3-2000 Lux, 2.8 Mtr Mounting Height, Detection Angle: 360 deg, Detection Distance: 2-16 Mtr, IP20, Surface Mount, Polycarbonate, White, 20/40 deg C, 115 mm Diameter

Key Specifications

SKU	LEDRZU360MWI20-01
Brand	Robus
Range Name	Zuni
Product Type	Motion Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable for surface applications Polycarbonate housing providing high impact of IK10 Suitable for loop-in/loop-out to parallel sensor or multiple fittings High load contact rating allows numerous fittings to be switched No minimum load requirements Detection range 360 deg, detection distance 8m at mounting height of 2.8m Adjustable time delay of 10sec to 15 min LED/Fluorescent load max 1000W Resistive load max 2000 watt Gardens, parking areas, driveways, decking areas, loading bays, corridors, patios, stairways, corner mounting in larger rooms, paths and walkways, passages
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	RZU360MWI20-01
Colour	White
Current	10 Amp
Detection Angle	360 deg
Detection Distance	2-16mtr
Diameter	115mm
Frequency	50/60 Hz
Intensity	3-2000 Lux
IP Rating	IP20
Mounting Height	2.8mtr
Material	Polycarbonate
Mounting Method	Surface
Temperature	20/40 deg C
Voltage	220-240 Volt
