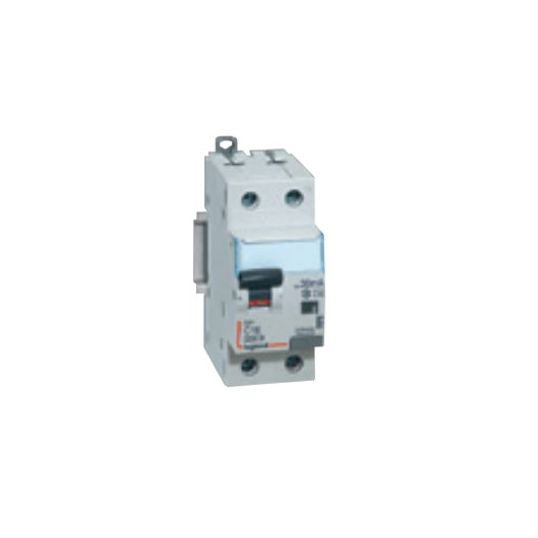

Legrand Combination RCD Circuit Breaker RCBO 1P+N 10 Amp 240V 6 kA 1Module 17.8mm DIN 35 Rail

Description

Combination RCD Circuit Breaker RCBO, 10 Amp, 240 Volt, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Number of Modules: 1, 17.8mm Module Width, Trip Characteristic: C Curve, 2 x 0.75 to 4 mm Flex, 1 x 0.75 to 16 Rigid Terminal Connection, Cage, Captive Screw, IP20, IP40, DIN 35mm Rail,-25 to 60 deg C, 104.5mm Height, 17.8mm Width, 67.1mm Depth

Key Specifications

Barcode (EAN-13)	3414970751836
SKU	LEG411129
Brand	Legrand
Range Name	Lexic DX3
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	411129
Current	10 Amp
Connection Type	Cage/ Captive Screw
Height	104.5mm
Depth	67.1mm
Modules	1 Module 17.8mm
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP20/40
Number Of Poles	1 Pole
Temperature	-25 to 60 deg C
Trip Characteristic	C Curve
Terminal Connection	2 x 0.75 to 4 sq-mm Flex/ 1 x 0.75 to 16 Rigid
Trip Sensitivity	30 mA
Voltage	240 Volt
Width	17.8mm
