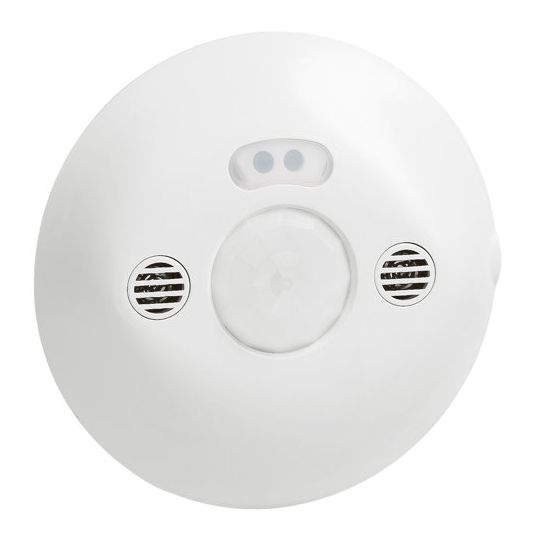

Legrand Passive Infrared Motion Detector 0-360deg 3M 8.5A 240V IP20 White Surface Mount

Description

Passive Infrared Motion Detector, 240 Volt AC, 8.5 Amp, 50/60 Hz, 0.8 Watt, 68 mm Mounting Height, Control Type: Vacancy/Occupancy Mode, Detection Angle: 0-360 deg, Detection Distance: 3 Mtr, 2 x 2.5 mm, IP20, Surface Mount, Plastic, White, 5/45 deg C

Key Specifications

Barcode (EAN-13)	3245060488062
SKU	LEG48806
Brand	Legrand
Product Type	Motion Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Automatic lighting management in areas that benefit from natural light Automatic on/off switching upon detection occupancy mode Manual switching on with push-button, automatic switching off vacancy mode Time delay 15 minutes, light level threshold 500 lux for false ceiling sensors, 300 lux for flush-mounted sensors Interference filtering
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	48806
Colour	White
Current	8.5 Amp
Detection Angle	0-360 deg
Conductor Size	2 x 2.5 mm
Detection Distance	3mtr
Frequency	50/60 Hz
IP Rating	IP20
Material	Plastic
Mounting Height	68mm
Mounting Method	Surface
Temperature	5/45 deg C
Voltage	240 Volt
Wattage	0.8 Watt
