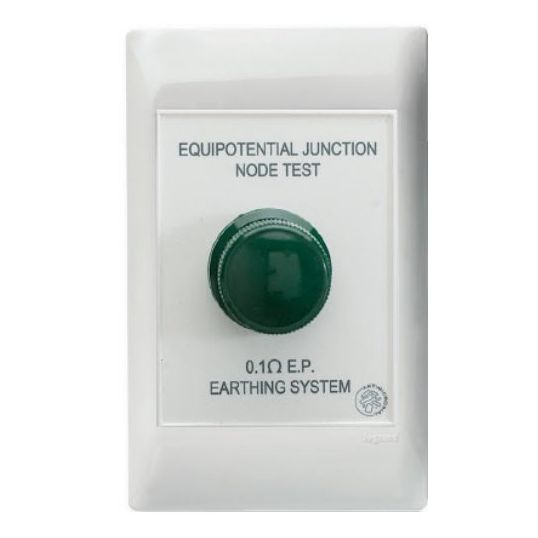

Legrand Medical Equipotential Earth Stud Standard 1 Gang 230/240V IP41 Vertical White

chevron-left

Description

chevron-down
Equipotential Earth Stud Medical, 230-240 VAC, 50 Hz, 1 Gang, Vertical Orientation, IP41, 84 mm Mounting Centres, Screw Connection, White, 5 to 35 deg C, 118 mm Height, 74 mm Width, 10 mm Depth, Medical Range

Key Specifications

chevron-down
Barcode (EAN-13)
9321001428169
SKU
LEGECEES/1GCAWE
Brand
Legrand
Product Type
Earth Studs

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Chemical resistant and antimicrobial
  • Suitable for cardiac protected areas to protect against micro electric shocks
  • Retained terminal screws
  • Oval 84 mm fixing points - make it easier to straighten-up products at the last minute
  • Paint path lessens potential damage to walls by providing a small channel for paint ingress
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product ECEES/1GCAWE
Colour White
Connection Type Screw
Depth 10 mm
Frequency 50 Hz
Height 118 mm
IP Rating IP41
Mounting Centres 84 mm
Number Of Gangs 1 Gang
Orientation Vertical
Please Note Medical Range
Temperature 5 to 35 deg C
Width 74 mm
