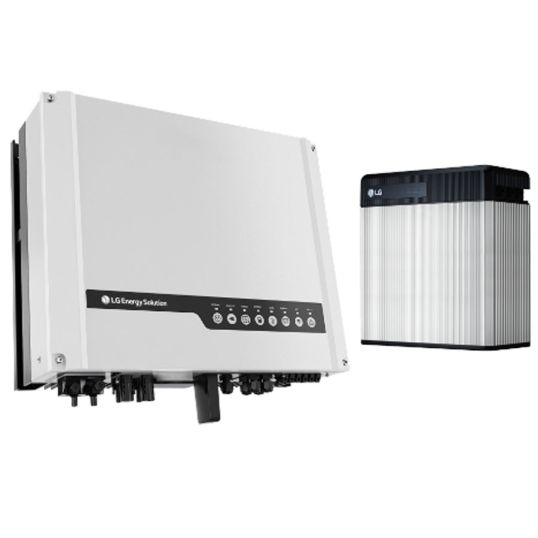

LG RESU LGES-5048 Hybrid 5kW Inverter+RESU10 Online Warranty 2 MPPT 5kW 11A

chevron-left

Description

chevron-down
Hybrid Inverter + Battery Pack, 7500 Watt DC Input, 580 Volt DC Input, 360 Volt DC Nominal, 120-550 Volt DC MPPT Voltage Range, 125 Volt DC Start-up, 11 Amp DC Max. Input, 2 MPPTs, 5 kW AC Output, 4600 VA AC Max. Apparent, 230 Volt AC Nominal, 60 Hz AC Operating, Inverter: 20 Amp, Battery: 100 Amp AC Output, <3% Harmonic Distortion, 97.6% Efficiency, 97% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, Inverter: <=4000 mtr, Battery: 2000 mtr Max. Altitude, Lithium-Ion, Inverter: CAN/RS485/Wi-Fi, Battery: CAN 2.0B Communication Port, Natural Convection Cooling, <25 dB, Inverter: Wall Bracket, Battery: Floor/Wall Mounting, Inverter: IP65, Battery: IP55, 4K4H, Inverter: -25 to 60 deg C, Battery: -10 to 45 deg C, Inverter: 0-95%, Battery: 5-95% Relative Humidity, Inverter: 440 mm, Battery: 484 mm Height, Inverter: 516 mm, Battery: 452 mm Width, Inverter: 184 mm, Battery: 227 mm Depth, Inverter: 30 kg, Battery: 75 kg, UL1642, CE/RCM/IEC 62619/FCC/UL1973, IEC 61000-6-1, IEC 61000-6-3, UL1642, CE/RCM/IEC 62619/FCC/UL1973, IEC 61000-6-1, Class 9

Key Specifications

chevron-down
SKU
LGHLGES-5048+RESU10
Brand
LG Energy Solutions
Range Name
Resu
Product Type
Hybrid Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed to fit with perfectly with RESU 6.5, RESU 10, RESU 10
  • UPS Backup
  • Reliable 10 Years Warranty Provided by LG Energy Solution
  • PV Oversizing to 8.5kW With Battery
  • Single Point of Technical Support through LG Energy Solution Service
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product LGES-5048+RESU10
AC Max. Apparent Power 4600 VA
AC Nominal Voltage 230 Volt
AC Operating Frequency 60 Hz
AC Output Current Inverter 20 Amp/Battery 100 Amp
AC Output Power 5 kW
Battery Lithium-Ion
Communication Port Inverter: CAN/RS485/Wi-Fi/Battery: CAN 2.0B
Climate Category 4K4H
Cooling Method Natural Convection
DC Input Power 7500 Watt
DC Input Voltage 580 Volt
DC Max. Input Current 11 Amp
DC MPPT Voltage Range 120-550 Volt
DC Nominal Voltage 360 Volt
DC Start-up Voltage 125 Volt
Depth Inverter: 184 mm Battery: 227 mm
Efficiency 97.60%
IP Rating Inverter IP65/Battery IP55
Height Inverter: 440 mm Battery: 484 mm
Max. Operating Altitude Inverter <=4000 mtr/Battery 2000 mtr
Mounting Method Inverter Wall Bracket; Battery Floor/Wall
MPPT Efficiency 99.90%
Noise Level <25 dB
Number of MPPTs 2
Operating Temperature Inverter -25 to 60 deg C/Battery -10 to 45 deg C
Phase 1 Phase
Relative Humidity Inverter: 0-95% Battery: 5-95%
Topology Non-Isolated
Total Harmonic Distortion <3%
Width Inverter: 516 mm Battery: 452 mm
