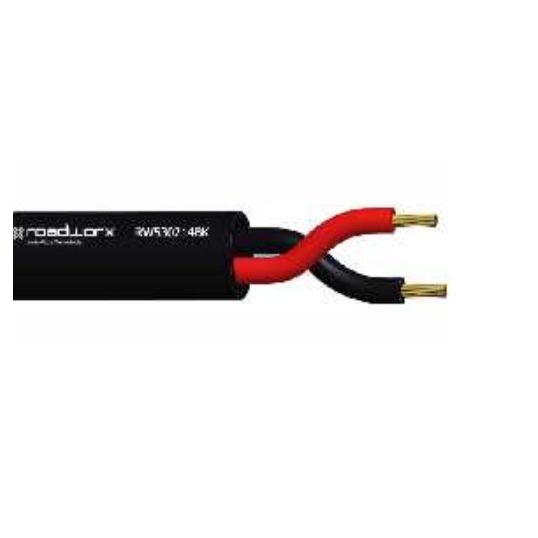

Madison Roadworx Speaker Cable 2 Core Round 14AWG PVC/PVC Black 100m

Description

Speaker Cable, 14 AWG, Bare Copper, 2 Core, 50/0.25 mm +/-0.006 mm Strands, 8.8 mm +/-0.2 mm Overall Diameter, 88 mm Bend Radius, >=0.6 mm Insulation Thickness, >=1 mm Sheath Thickness, Insulation: >=100% Sheath: >=100% Elongation, 344 N Pulling Tension, Insulation: >=13 N/mm Sheath: >=12 N/mm Tensile Strength, 7.4 Ohm/km Conductor Resistance, PVC Insulation, Black/Red Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C

Key Specifications

SKU	MADRW530214BK100
Brand	Madison
Range Name	Roadworx
Product Type	Speaker Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RW530214BK100
Conductor Resistance	7.4 Ohm/km
Bend Radius	88 mm
Conductor Size	14 AWG
Conductor Type	Bare Copper
Insulation Colour	Black/Red
Elongation	Insulation: >=100% Sheath: >=100%
Insulation Material	PVC
Number of Cores	2 Core
Insulation Thickness	>=0.6 mm
Overall Diameter	8.8 mm +/-0.2 mm
Pulling Tension	344 N
Sheath Colour	Black
Sheath Thickness	>=1 mm
Sheath Material	PVC
Stranding	50/0.25 mm +/-0.006 mm
Temperature	-15 to 70 deg C
Tensile Strength	Insulation: >=13 Nm/Sheath: >=12 Nm
