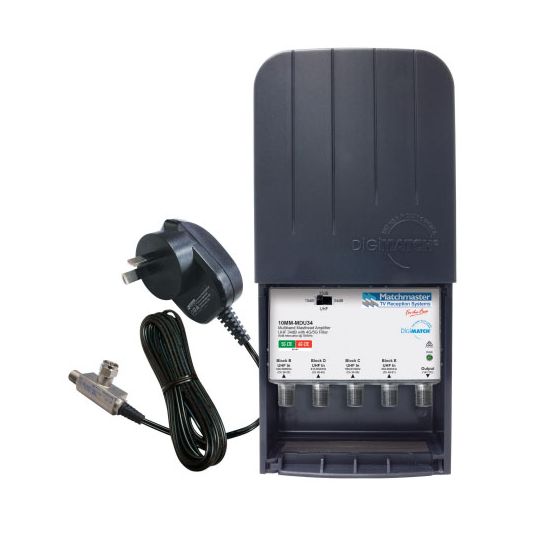

Matchmaster Masthead Amplifier w/14 Volt DC 4G/5G Filter and Power Supply

chevron-left

Description

chevron-down
Masthead Amplifier w/14 Volt DC 4G/5G Filter and Power Supply

Key Specifications

chevron-down
Barcode (EAN-13)
9322190023647
SKU
MAT10MM-MDU34P
Brand
Matchmaster

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Individual UHF block filters B, C, D & E with inbuilt 4G/5G LTE filter
  • 34dB maximum gain with adjustment switch that is selectable between 15, 25 and 34dB
  • Filtering at 700MHz is >50dB at maximum gain for UHF of 34dB using blocks B, C & D and >50dB at 750MHz for block E
  • Can be used for all individual UHF channel blocks (B, C, D & E) or a combination of two non adjacent blocks
  • Heavy-duty UV stable outdoor weather proof casing
  • Includes 14VDC power supply and cable ties for mounting
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 10MM-MDU34P
Product Type simple
