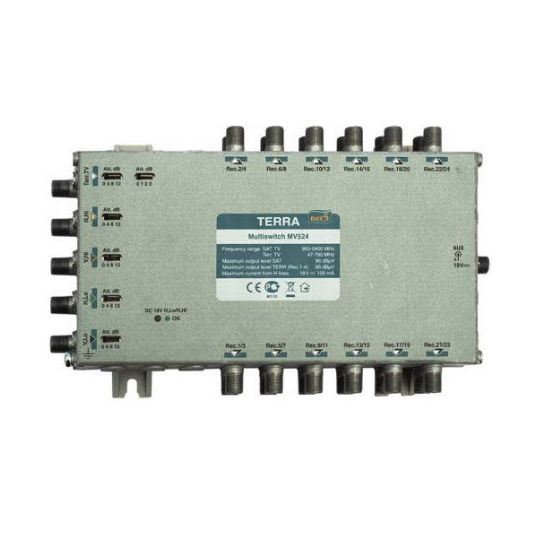

Matchmaster Multi-Switch 5 Wire 24 Way Terra Foxtel Approved

chevron-left

Description

chevron-down
Multi-Switch, SAT IF 950-2400 MHz, Terr TV 47-862 MHz, Number of Inputs: 5, Number of Outputs: 24, For Use With: Large Installations of Satellite IF Distribution Systems, 227mm x 135mm x 50mm, Terra Remote Powered

Key Specifications

chevron-down
Barcode (EAN-13)
9322190023883
SKU
MAT21MM-MV524
Brand
Matchmaster

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Length of the subscriber line up to 80 meters (must meet Pay TV provider specifications)
  • Four positions discrete gain regulator for each satellite IF line and separate 16 positions discrete gain regulator for terrestrial TV
  • Active terrestrial TV path powering from central power supply allows to receive terrestrial TV programs without switching on satellite TV receiver
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 21MM-MV524
Frequency SAT IF 950-2400 MHz/Terr TV 47-862 MHz
Dimensions 227 mm x 135 mm x 50 mm
For Use With Large Installations of Satellite IF Distribution Systems
Number of Inputs 5
Number of Outputs 24
Please Note Terra Remote Powered
Product Type simple
