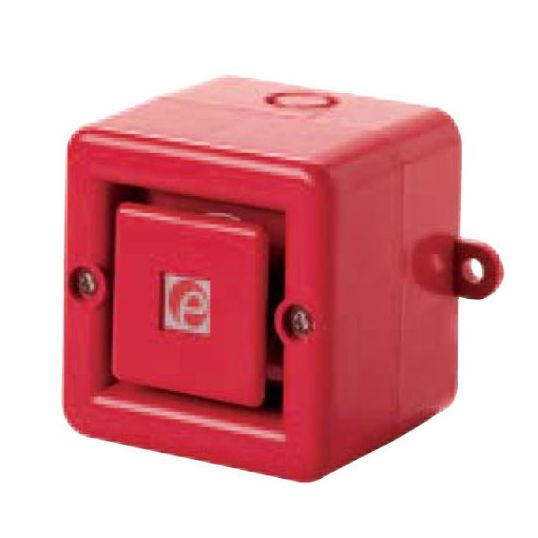

E2S A100 Electronic Alarm Sounder 104 dB at 1 m 10-30 VDC Red Housing

chevron-left

Description

chevron-down
Electronic Alarm Sounder, 10-30 Volt DC, 25 mA at 24 Volt DC, 104 dB at 1mtr, 32 Tones Sound, 5 J Flash, 3 Stage Alarm, 3 x M20 Knockout Connection, IP66, Flame Retardant ABS, Red Housing, -25-55 deg C, 86mm x 86mm

Key Specifications

chevron-down
SKU
MECESS1010
Brand
E2S
Product Type
Audible Warning Devices

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Continuous rating
  • Automatic synchronization on multi-sounder systems
  • Sounder and beacon controlled independently
  • Volume control
  • Three stage alarm (reverse polarity stage switching on DC units)
Standard Pack Size 1
UNSPSC Class 46171600
UOM EA
Vendor Product ESS1010
Alarm 3 Stage
Colour Red Housing
Connection Type 3 x M20 Knockout
Current 25 mA at 24 Volt DC
Dimensions 86 mm x 86 mm
Flash Energy 5 J
IP Rating IP66
Material Flame Retardant ABS
Sound Frequency 32 Tones
Temperature -25-55 deg C
Sound Level 104 dB at 1 mtr
Voltage 10-30 Volt DC
