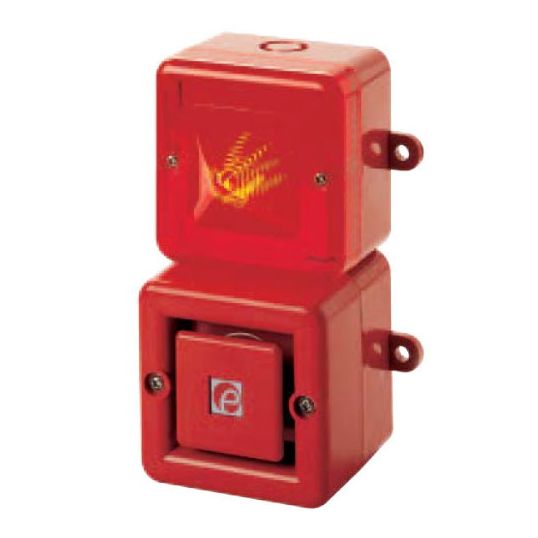

E2S AL100 Electronic Alarm Sounder and Strobe Beacon 104 dB at 1 m 20-28 VDC Red Housing Amber Lens

Description

Electronic Alarm Sounder and Strobe Beacon, 20-28 Volt DC, 25 mA Sounder, 250 mA Beacon, 104 dB at 1mtr, Xenon Lamp, Light Output: 200 cd, 32 Tones Sound, 3 Stage Alarm, Flash Rate: 60 fpm, 2 x M20 Knockout Connection, IP66, Flame Retardant ABS, Red Housing, Amber Lens, -25-55 deg C, 98mm x 86mm

Key Specifications

SKU	MECESS1110A
Brand	E2S
Product Type	Audible Warning Devices

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Continuous rating Automatic synchronization on multi-sounder systems Sounder and beacon controlled independently Volume control Three stage alarm (reverse polarity stage switching on DC units) 32 tones, includes ISO tones to Australian standards
Standard Pack Size	1
UNSPSC Class	46171600
UOM	EA
Vendor Product	ESS1110A
Alarm	3 Stage
Colour	Red Housing/Amber Lens
Current	25 mA Sounder/250 mA Beacon
Connection Type	2 x M20 Knockout
Dimensions	98 mm x 86 mm
Flash Rate	60 fpm
IP Rating	IP66
Lamp Type	Xenon
Light Output	200 cd
Material	Flame Retardant ABS
Sound Frequency	32 Tones
Sound Level	104 dB at 1 mtr
Temperature	-25-55 deg C
Voltage	20-28 Volt DC
