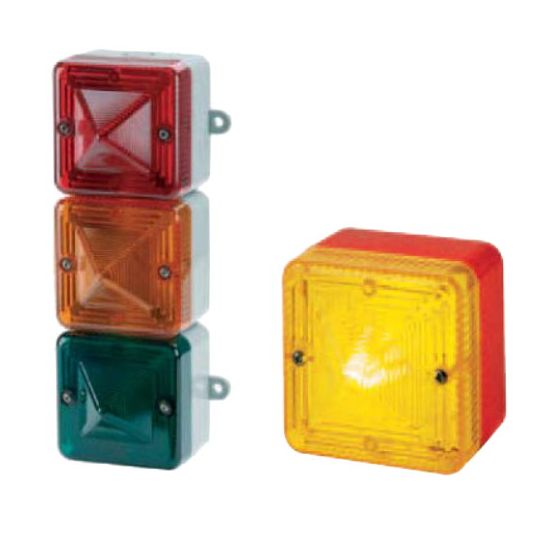

E2S L101 series Industrial Strobe Beacon Amber 5J Xenon 230VAC IP66 ABS Plastic Base Polycarbonate Lens
Description
Industrial Beacon Xenon Strobe, 230 Volt AC, 35 mA, 5 J Xenon Lamp, Flash Rate: 60 fpm, M20 Knockout Connection, Light Output: 200 cd, 1 Hz Flashing, IP66, ABS Plastic Base Housing, Polycarbonate Lens, Amber Lens, -25-55 deg C, 86mm x 86mm
Key Specifications
| SKU |
MECESS7030A
|
|---|---|
| Brand |
E2S
|
| Product Type |
Beacons & Strobes
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39111700 |
| UOM | EA |
| Vendor Product | ESS7030A |
| Connection Type | M20 Knockout |
| Current | 35 mA |
| Dimensions | 86 mm x 86 mm |
| Flash Rate | 60 fpm |
| Flashing Frequency | 1 Hz |
| Housing Material | ABS Plastic |
| IP Rating | IP66 |
| Lamp Type | 5 J Xenon |
| Lens Colour | Amber |
| Light Output | 200 cd |
| Lens Material | Polycarbonate |
| Temperature | -25-55 deg C |
| Voltage | 230 Volt AC |
