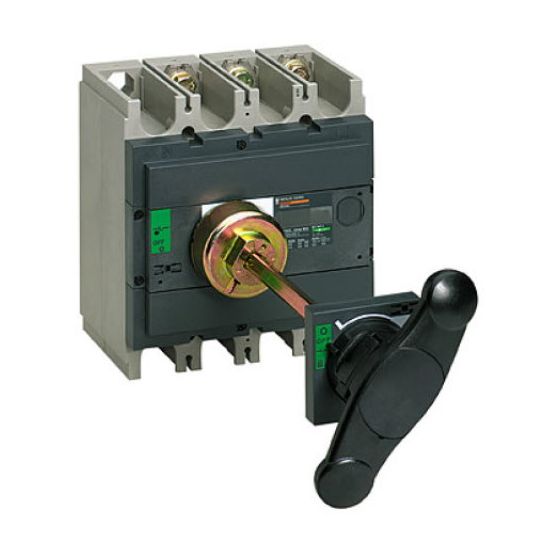

Schneider Load-Break Switch Front Operated 3P 375 kW AC23 Fixed Mount

chevron-left

Description

chevron-down
Load-Break Switch Front Operated, 690 Volt AC, 250 Volt DC, 630 Amp, AC23 Rating: 630 Amp @ 415 Volt AC, 375 kW @ 415 Volt AC, 3 Pole, Screw, IP40, Fixed Mount, Panel, Black Handle, -25 to 70 deg C, 205 mm Height, 185 mm Width, 130 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3303430311140
SKU
MEG31114
Brand
Schneider
Range Name
Interpact
Product Type
Load-Break Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 31114
AC23 Rating 630 Amp 375 kW @ 415 Volt AC
Colour Black Handle
Connection Type Screw
Current 630 Amp
Depth 130 mm
Height 205 mm
IP Rating IP40
Number Of Poles 3 Pole
Temperature -25 to 70 deg C
Voltage 690 Volt AC/250 Volt DC
Width 185 mm
