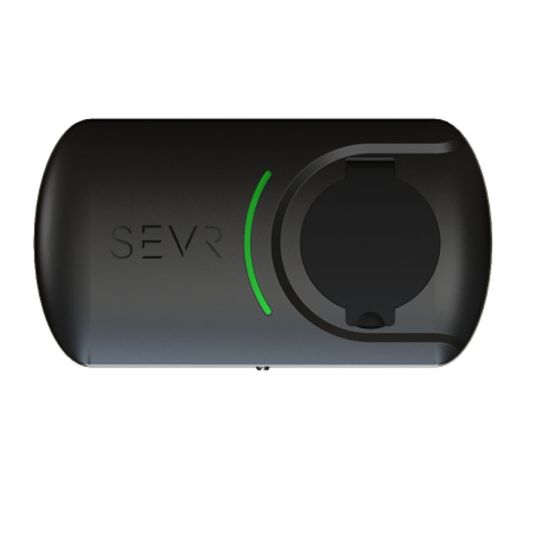

M-Elec AC Electric Vehicle Charger 7kW 240V 1Ph Type 2 Socket 5m IP54 32A 50/60Hz 2.4 G & 5 GHz Bluetooth 5.2/WIFI IK08

chevron-left
loader
Loading...

Description

chevron-down
Designed for Australians, this single phase EV charger boasts a sleek, compact design, perfect for discreet residential installation. Compatible with all EV car models, ensuring a safe and reliable charging experience. It boasts high-quality construction backed by a three-year warranty. With easy installation by a licensed electrician, the charger operates on a single-phase power supply, making it an ideal choice for home charging needs. It carries an IP54 rating for weather resistance and an IK08 durability rating. Featuring a convenient Type 2 outlet, it allows users to effortlessly plug in the 5 mtr cable sold separately (or any other Type 2 cable when needed). Enjoy seamless charging without compromising on style and convenience.. Automated load management can be enabled by adding on the CT Clamp accessory. The EVX1 can even be internally adjusted from 2.2-7.4 kW during installation to reduce its maximum output to meet any local requirements.

Key Specifications

chevron-down
Barcode (EAN-13)
9348337027224
SKU
MELSV-EVX1-7T-1P
Brand
M-Elec
Range Name
EVC
Product Type
AC Electric Vehicle Charger

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Compatible with all Australian EV cars
  • Easy and safe to use
Standard Pack Size 1
UNSPSC Class 25175000
UOM EA
Vendor Product SV-EVX1-7T-1P
IP Rating IP54
Cord Length 5 mtr
Power Output 7 kW
Height 200 mm
Width 130 mm
Input Frequency 50/60 Hz
Depth 115 mm
Phase 1 Phase
Input Voltage 240 Volt AC
Standards IEC / EN 61851-1 / 62196-2
Connector Type Type 2 Socket
Operating Temperature -30 to 50 deg C
Certifications CE / R cm
IK Rating IK08
Item Weight 1.4 kg
Output Current 32 Amp
Wireless Technology 2.4 G and 5 GHz Bluetooth 5.2 / Wi-Fi
