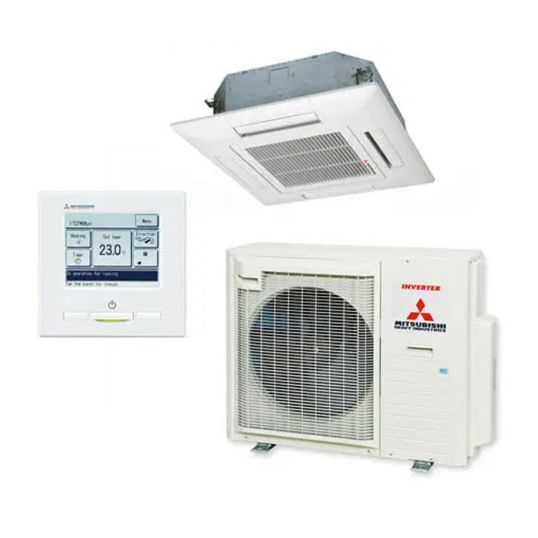

FDT Air Conditioner Set Four Way Ceiling Cassette 10kW 13.2A Cooling H1: 11.2kW H2: 10kW 12.4A Heating R32 Refrigerant

chevron-left

Description

chevron-down
Air Conditioner Set, 10 kW Cooling Capacity, H1: 11.2 kW, H2: 10 kW Heating Capacity, 13.2 Amp Cooling, 12.4 Amp Heating, Cooling Air Flow Rate: Indoor: P-Hi: 616 l/sec, H: 433 l/sec, M: 383 l/sec, L: 283 l/sec, Heating Air Flow Rate: Indoor: P-Hi: 616 l/sec, H: 433 l/sec, M: 383 l/sec, L: 283 l/sec, R32 Refrigerant, 2.73 kW Cooling, 2.54 kW Heating, 6.4 kW Maximum, 298mm x 840mm x 840mm Indoor Dimensions, 845mm x 970mm x 370mm Outdoor Dimensions

Key Specifications

chevron-down
SKU
MHIFDT100AVNAWVH
Brand
Mitsubishi Heavy Industries
Product Type
Air Conditioning

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High power operation
  • Weekly timer
  • Sleep timer
  • Silent operation
  • Built-in drain pump
  • Vertical auto swing
Standard Pack Size 1
UNSPSC Class 40101700
UOM EA
Vendor Product FDT100AVNAWVH
Cooling Air Flow Rate Indoor: P-Hi: 616 l/sec H: 433 l/sec M: 383 l/sec L: 283 l/sec
Cooling Capacity 10 kW
Heating Air Flow Rate Indoor: P-Hi: 616 l/sec H: 433 l/sec M: 383 l/sec L: 283 l/sec
Heating Capacity H1: 11.2 kW/H2: 10 kW
Indoor Dimensions 298 mm x 840 mm x 840 mm
Outdoor Dimensions 845 mm x 970 mm x 370 mm
Rated Current (Cooling) 13.2 Amp
Rated Current (Heating) 12.4 Amp
Refrigerant Type R32
