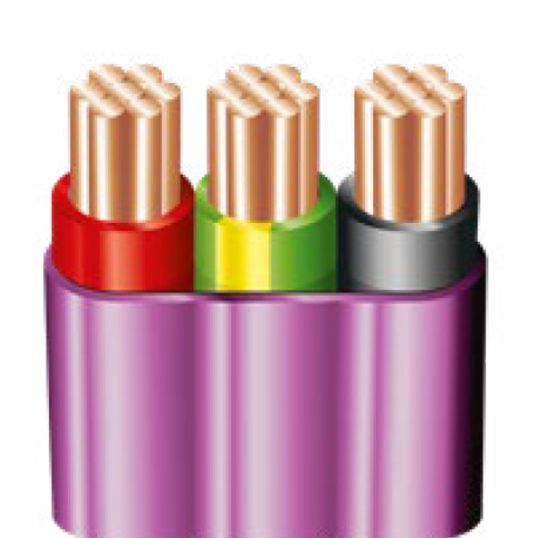

Prysmian 1.5mm Flat TPS Cable 1mtr
Description
Flat TPS Cable, 1.5 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.5 mm Strands, 1.5 mm Nominal Diameter, 10.1 mm Overall Diameter, 1 mtr Length, 20 mm Bend Radius, 0.6 mm Insulation Thickness, 13.6 Ohm/km Conductor Resistance, V-90 PVC Insulation, Red/Black/Green/Yellow Insulation, 3V-90 PVC Sheath, Violet Sheath, 0 to 90 deg C, AS/NZS 5000.2
Key Specifications
| Barcode (EAN-13) |
9310835926989
|
|---|---|
| SKU |
MMC1.5TENM
|
| Brand |
Prysmian
|
| Product Type |
Flat TPS Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20319285 |
| Bend Radius | 20 mm |
| Conductor Resistance | 13.6 Ohm/km |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Insulation Colour | Black/Red/Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.6 mm |
| Nominal Diameter | 1.5 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 10.1 mm |
| Sheath Colour | Violet |
| Sheath Material | 3V-90 PVC |
| Standards | AS/NZS 5000.2 |
| Stranding | 7/0.5 mm |
| Temperature | 0 to 90 deg C |
| Voltage | 450-750 Volt |
