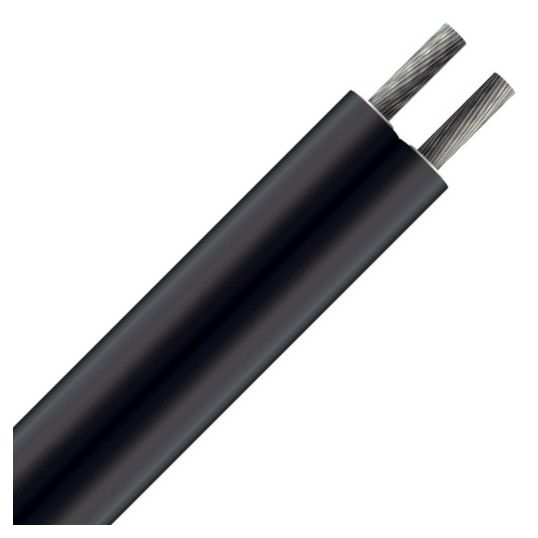

Prysmian Slim Solar Cable PV 2 Core 4mm 0.6/1kV XLPO/XLPO Black

Description

Solar Cable, 0.6-1 kV AC/0.9-1.5 kV DC, 4 mm, 2 Core, 52/0.3 mm Strands, 4.85 +/-0.20 mm x 10.0 +/-0.40 mm Overall Diameter, >=6 x Cable OD Bend Radius, <=5.09 Ohm/km at 20 deg C Conductor Resistance, >=10 Ohm/cm at 20 deg C Insulation Resistance, Stranded Tinned Copper Conductor, XLPO Insulation, Black/Red Insulation, XLPO Sheath, Black Sheath, -40 to 125 deg C, Fire Perf IEC60332-1, 2 PfG 1169/08.07

Key Specifications

Barcode (EAN-13)	9310835749045
SKU	MMC5749045
Brand	Prysmian
Product Type	Solar Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20038503
Bend Radius	>=6 x Cable OD
Conductor Material	Stranded Tinned Copper
Conductor Resistance	<=5.09 Ohm/km at 20 deg C
Conductor Size	4 mm
Insulation Colour	Black/Red
Insulation Material	XLPO
Insulation Resistance	>=10 Ohm/cm at 20 deg C
Overall Diameter	4.85 +/-0.20 mm x 10.0 +/-0.40 mm
Number of Cores	2 Core
Sheath Material	XLPO
Sheath Colour	Black
Stranding	52/0.3 mm
Standards	Fire Perf IEC60332-1 2 PfG 1169/08.07
Voltage	0.6-1 kV AC/0.9-1.5 kV DC
Temperature	-40 to 125 deg C
