Std Pack Size
100
OUR P/N:
MMCCEB03XNPKG37/1.78

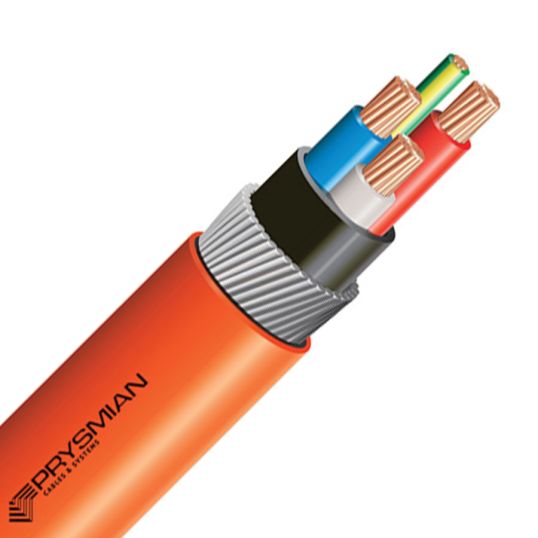

Circular Power Cable, Armoured, 3 Core & Earth, 95 mm, Plain Annealed Copper, 0.6/1 kV, 35.6 mm Bedding Diameter, 39.5 mm Diameter Over Armour, 44 mm Overall Diameter, 530 mm Bend Radius, Steel Wire Armour, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red Blue White Green Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Additional Information
| Brand | Prysmian |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199674 |
| Bedding Diameter | 35.6 mm |
| Armour Material | Steel Wire |
| Bend Radius | 530 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green |
| Insulation Material | XLPE |
| Diameter Over Armour | 39.5 mm |
| Overall Diameter | 44 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
| Temperature | 90 deg C |
| Number of Cores | 3 Core + Earth |
| Conductor Size | 95 mm |
