Prysmian 185 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 100mtr
Description

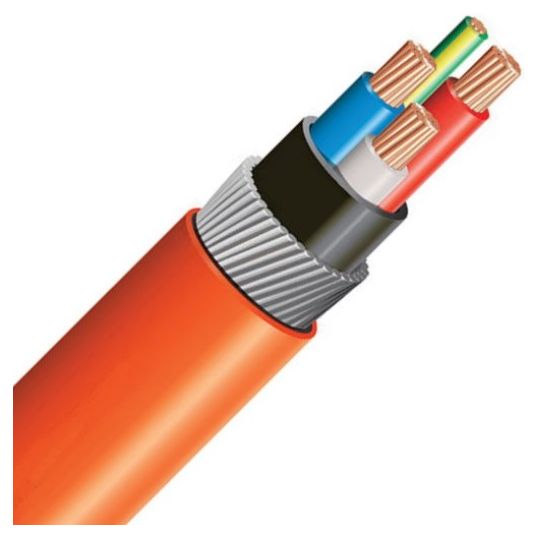

Circular Power Cable, Armoured, 3 Core & Earth, 185 mm, Plain Annealed Copper, 0.6/1 kV, 49.6 mm Bedding Diameter, 54.6 mm Diameter Over Armour, 59.8 mm Overall Diameter, 720 mm Bend Radius, Steel Wire Armour, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red Blue White Green Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835914108
|
|---|---|
| SKU |
MMCCEB03XNPKG37/2.52
|
| Brand |
Prysmian
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199688 |
| Armour Material | Steel Wire |
| Bedding Diameter | 49.6 mm |
| Bend Radius | 720 mm |
| Conductor Type | Annealed Copper |
| Conductor Size | 185 mm |
| Core Colours | Red/Blue/White/Green |
| Diameter Over Armour | 54.6 mm |
| Insulation Material | XLPE |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 59.8 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
