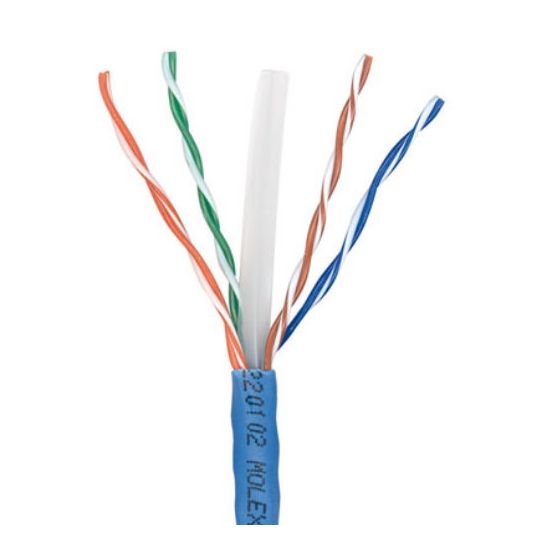

Molex PowerCat6 U/UTP Network Cable Cat6 4 Pair 23AWG Polyethylene/PVC Blue
Description
Molex PowerCAT 6 (C6) 4 Pair U/UTP cable has been designed to support high speed data transmission systems such as Gigabit Ethernet. The cable is part of the PowerCAT 6 range of products that are designed to comply with the CAT 6 specification. We recommend that the full range of PowerCAT 6 products are used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.
Key Specifications
| Barcode (EAN-13) |
1P0181440011
|
|---|---|
| SKU |
MODCAA-00076
|
| Brand |
Molex
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CAA-00076 |
| Cable Type | Cat 6 U/UTP |
| Bend Radius | <4 X Cable Diameter at -20 deg C +/-1 deg C |
| Conductor Resistance | 66.5 Ohm/km |
| Conductor Size | 23 AWG |
| Conductor Type | Solid |
| Conductor Material | Bare copper |
| Filler Material | Polyethylene Compound |
| Frequency Bandwidth | 250 MHz |
| Insulation Resistance | 500 MOhm |
| Insulation Material | Polyethylene Compound |
| Max. Pulling Force | 100 N |
| Pair Count | 4 |
| Outside Diameter | 6 mm +/-0.2 mm |
| Sheath Colour | Blue |
| Sheath Material | PVC |
| Temperature | 75 deg C |
| Voltage | 150 Volt |
