Molex PowerCat6 U/FTP Network Cable Cat6A 4 Pair 23AWG Polyolefin/LSZH Violet 500M
Description

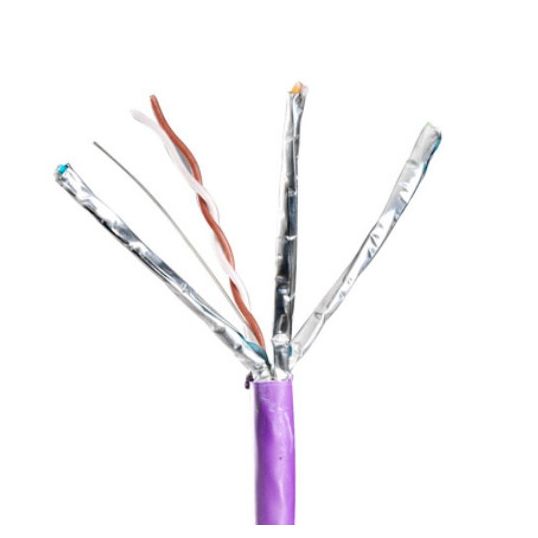

The PowerCat 6A Shielded Cable is a key component of the PowerCat 6A end-to-end solution. Molex PowerCat 6A U/FTP Cable is specifically designed to support high speed data network applications such as 10-Gigabit Ethernet (10GBASE-T). The cable is constructed of 4 screened pairs and a drain wire. This cable minimizes alien crosstalk, provides excellent signal isolation and provides superior electromagnetic interference (EMI) protection. Molex recommends that the full range of PowerCat 6A Shielded products be used in a system to maximize cabling performance. This system is compliant with ISO/IEC 11801 amendment 1 and TIA-568.2-D for the support of 10GBASE-T.
Key Specifications
| SKU |
MODCAA-0322L-VL
|
|---|---|
| Brand |
Molex
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CAA-0322L-VL |
| Cable Type | Cat 6A U/FTP |
| Bend Radius | 54.4 mm +/-0.4 mm Short Term/27.2 mm +/-0.4 mm Long Term |
| Conductor Resistance | 72 Ohm/km |
| Conductor Size | 23 AWG |
| Conductor Type | Solid |
| Conductor Material | Bare Copper |
| Frequency Bandwidth | 500 MHz |
| Insulation Resistance | 500 MOhm |
| Insulation Material | Polyolefin |
| Max. Pulling Force | 100 N |
| Pair Count | 4 |
| Outside Diameter | 6.8 mm +/-0.4 mm |
| Screen Material | Laminated Aluminium |
| Sheath Colour | Violet |
| Sheath Material | LSZH |
| Temperature | 20 to 60 deg C |
| Voltage | 2 Volt |
