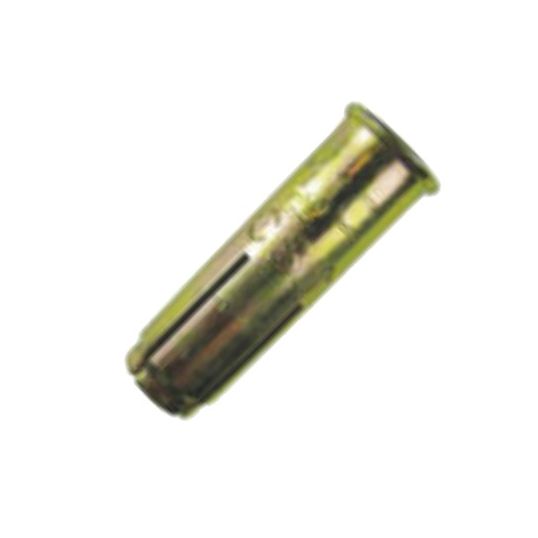

Macsim Macloc Anchor Medium Duty M8x50mm Zinc Passivated Yellow

chevron-left

Description

chevron-down
Macloc Anchor Medium Duty, M8, 50mm Length, 60mm Min Drill Depth, 15.8mm Drill Diameter, Zinc Passivated Yellow, 160mm Min. Edge Distance, 190mm Min. Spacing, Tensile Strength: 6.2 kN, Shear Strength: 2.4 kN

Key Specifications

chevron-down
Barcode (EAN-13)
9312862360484
SKU
MSF11M08
Brand
Macsim

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Flush finish
  • Follow up expansion in case of over loading
  • Suitable for: concrete, brick, block and stone
Standard Pack Size 1
UNSPSC Class 31162100
UOM EA
Vendor Product 11M08
Drill Diameter 15.8mm
Drill Depth 60mm Min
Diameter M8
Finish Zinc Passivated Yellow
Minimum Edge Distance 160mm
Minimum Spacing 190mm
Product Type simple
Tensile Strength 6.2 kN
