MSS Fibre Systems Fibre Optic Cable Singlemode Underground Loose Tube External 12 Fibre Nylon Blue
Description

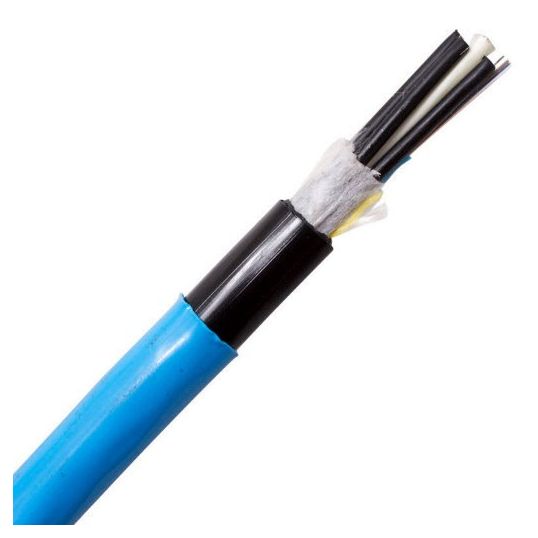

A Termite resistant Loose tube cable featuring a non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications. The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength. This standard loose tube construction features an inner UV resistant Polyethylene (PE) sheath and an outer termite/UV resistant Polyamide Nylon jacket. Other options include Composite (MM + SM), Sacrificial Sheath and CST Armour.
Key Specifications
| SKU |
MSS-CAB-LT-12-SM
|
|---|---|
| Brand |
MSS Fibre Systems
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 43223300 |
| UOM | MTR |
| Vendor Product | MSS-CAB-LT-12-SM |
| Attenuation | 0.35 dB/km at 1310 Nm - 0.35 dB/km at 1383 Nm - 0.21 dB/km at 1550 Nm - 0.24 dB/km at 1625 Nm |
| Bend Radius | 200 mm Installation/150 mm Long Term |
| Fibre Count | 12 |
| Fibre Mode | Singlemode |
| Fibre Type | SM/OS2 |
| Number of Fibres | 2-72 |
| Outside Diameter | 10 mm |
| Sheath Colour | Black/Blue |
| Sheath Material | Polyethylene/Nylon |
| Temperature | 10 to 70 deg C |
| Tensile Strength | 2 kN |
| Strength Member | Glass Fibre Reinforced Plastic |
| Tube Filling | Thixotropic Gel |
| Tube Size | 2.1 mm |
